Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

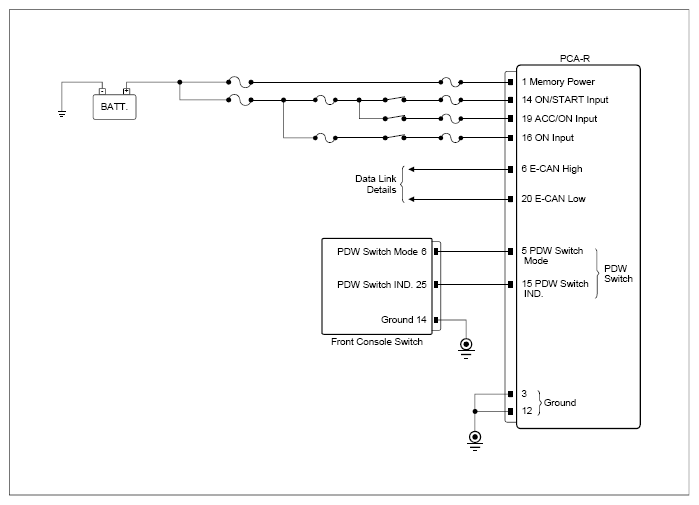

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Front console switch connector | 14 (ground) | Chassis ground | - | Approx. below 1Ω |
| Front console switch connector | 6 (PDW switch MODE) | PCA-R connector | 5 (PDW switch MODE) | Approx. below 1Ω | |
| Front console switch connector | 25 (PDW switch IND.) | PCA-R connector | 15 (PDW switch IND.) | Approx. below 1Ω | |
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the front console switch and Go to "Verification Of Repair " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
