Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cylinder head cover.
(Refer to cylinder Head Assembly - "CYLINDER HEAD COVER ")

Place the piston of cylinder 1 above the compression top dead center.

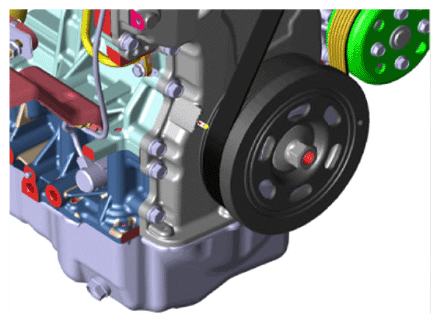

Rotate the crankshaft decoupler clockwise so that the piston of cylinder 1 is located at the compression upper dead point to match the timing mark on the timing chain cover with the groove on the decoupler.

Courtesy of KIA MOTORS AMERICA, INC.

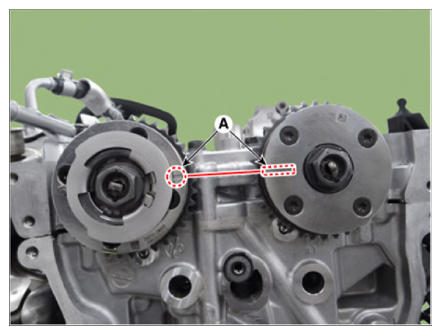

Check that the timing marks (A) of the intake and exhaust camshaft sprockets are in a straight line.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the timing marks do not match, the crankshaft is rotated once more. (At this time, the engine is not reversed.)

Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")

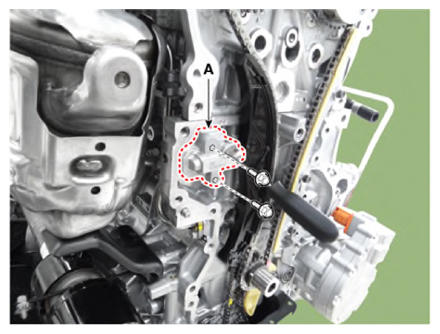

Remove the timing chain tensioner (A).

Courtesy of KIA MOTORS AMERICA, INC.

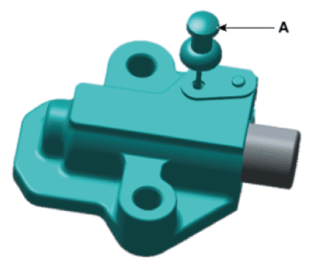

NOTE: Using a thin screwdriver, connect the timing chain tensioner, loosen the ratchet and secure the piston with a stopper pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

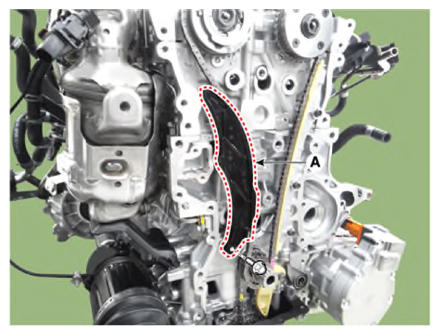

Remove the timing chain tensioner arm (A).

Courtesy of KIA MOTORS AMERICA, INC.

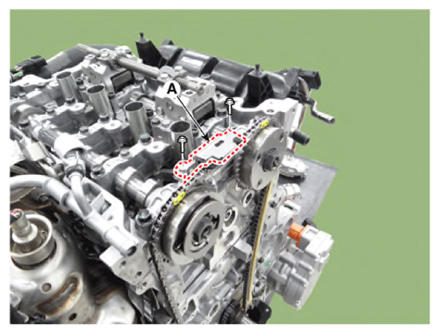

Remove the timing chain cam to cam guide (A).

Courtesy of KIA MOTORS AMERICA, INC.

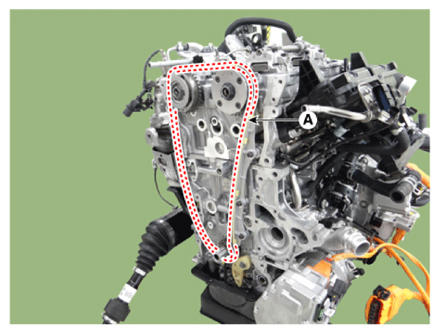

Remove the timing chain (A).

Courtesy of KIA MOTORS AMERICA, INC.

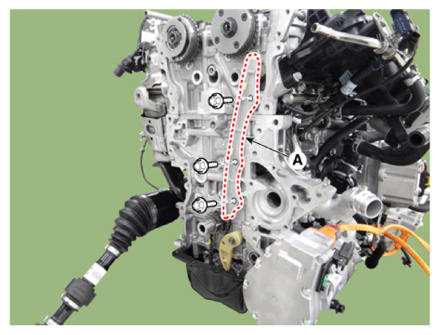

Remove the timing chain guide (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the oil pump chain.
(Refer to Lubrication System - "OIL PUMP ")

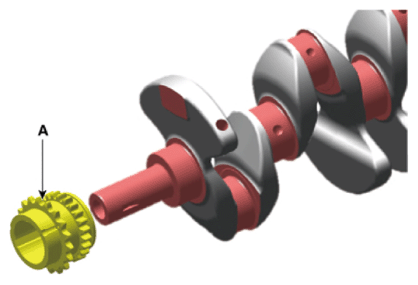

Remove the crankshaft sprocket (A)

Courtesy of KIA MOTORS AMERICA, INC.
