Repair Procedures: Removal
This working procedure dose not require engine and transaxle assembly removal.
- Use fender covers to avoid damaging painted surfaces.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion
Information
Mark all wiring and hoses to avoid misconnection.
- Disconnect the battery negative terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
- Shut off the high voltage circuit.
(Refer to General Information - "HIGH VOLTAGE SHUT-OFF PROCEDURES ")
- Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Remove the engine room under cover
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
- Drain the engine oil.
(Refer to Lubrication - " ENGINE OIL " )
- Remove the oil pan.
(Refer to Lubrication - "OIL PAN ")
- Remove the RH front wheel and tire.
(Refer to Suspension System - "WHEEL ")
- Remove the RH front wheel guard.
(Refer to Body (Interior and Exterior) - "FRONT WHEEL GUARD ")

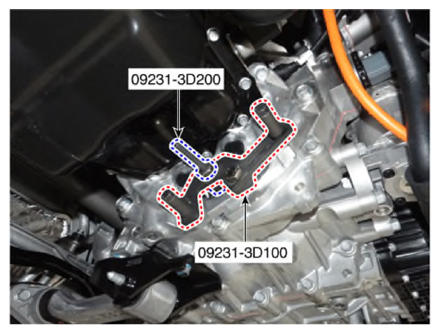

- Install the torsion damper using the SST (09231-3D200, 09231-3D100)
Tightening torque:
42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)

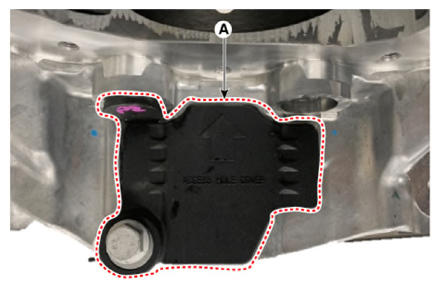

- Remove the access hall cover (A).

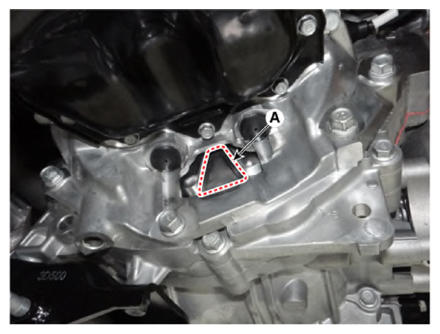

- Rotate the crankshaft pulley clockwise until a groove (A) on the torsion damper comes in sight.
- Install the SST (09231-3D200, 09231-3D100) to the torsion damper to attach the crankshaft decoupler.
- Remove the access hall cover (A).
- Install the jack to the edge of lower crankcase.NOTE: Put the rubber block between the jack and lower crankcase to avoid damaging the lower crankcase.
- Remove the engine mounting bracket.
(Refer to Engine and Transaxle Assembly - "ENGINE MOUNTING ")
- Remove the drive belt.
(Refer to Drive Belt System - "DRIVE BELT ")
- Remove the drive belt tensioner.
(Refer to Drive Belt System - "DRIVE BELT TENSIONER ")
- Remove the hybrid starter generator (HSG).
(Refer to Hybrid Motor System - "HYBRID STARTER GENERATOR (HSG) ")
- Remove the water pump.
(Refer to Cooling System - "WATER PUMP ")
- Remove the idler.
(Refer to Drive Belt System - "IDLER ")
- Remove the crankshaft decoupler.
(Refer to Drive Belt System - "CRANKSHAFT DECOUPLER ")
- Remove the cylinder head.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD ")

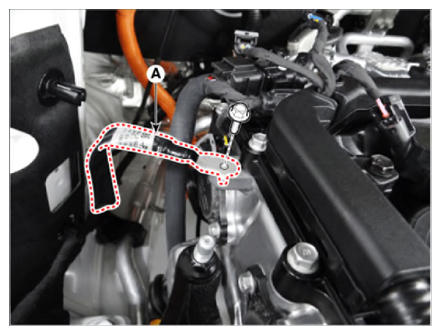

- Disconnect the engine ground cable (A).

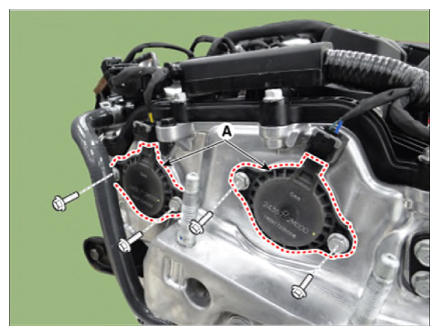

- Remove the variable force solenoid valve (VFS) (A).NOTE: When removing the timing chain cover, be sure to remove the variable force solenoid valve (VFS) first.

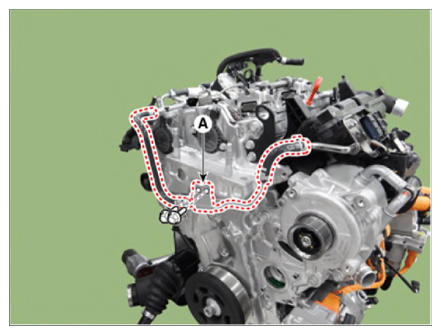

- Remove the turbocharger coolant hose and pipe (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

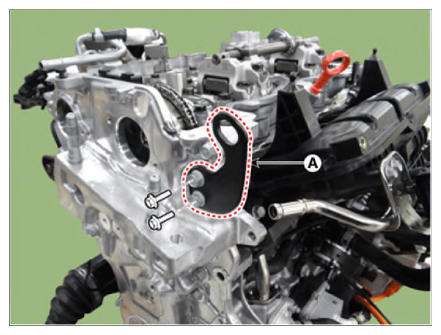

- Remove the engine front hanger (A).
Tightening torque:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

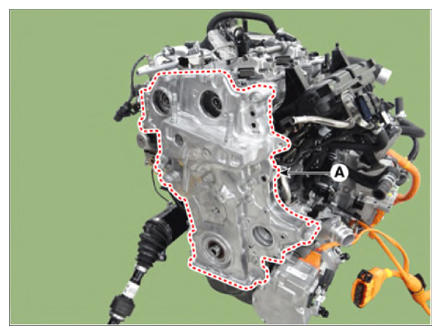

- Remove the timing chain cover (A) with the engine hangers.
