Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft decoupler.

    (Refer to Drive Belt System - "CRANKSHAFT DECOUPLER ")

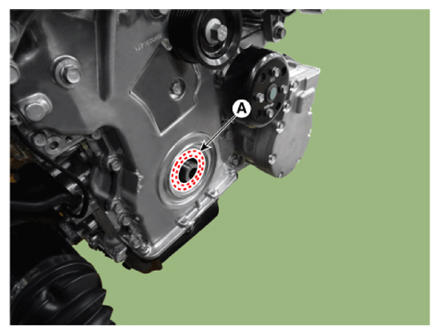

  2. Remove the front oil seal (A).
    G14937224Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the new front oil seal.
    1. Apply engine oil on the edge of new oil seal.
      NOTE: Remove any foreign substances from the lip portion of the oil seal.

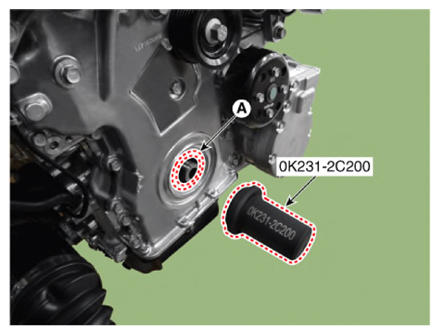

    2. Use the SST (0K231-2C200) and a rubber mallet to lightly tap and install the new front oil seal (A).
    G14937225Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the front oil seal.
  4. Install in the reverse order of removal.
