Oil pump

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
Remove the oil pan.
(Refer to Lubrication System - "OIL PAN ")

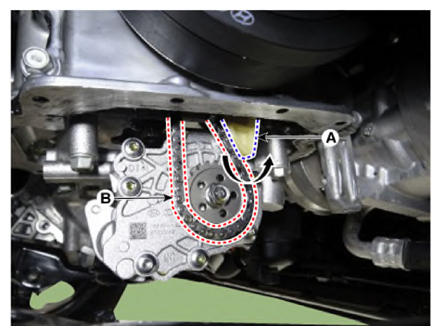

Turn the oil pump chain tensioner (A) in the direction of the arrow and separate the oil pump chain (B) from the oil pump.

Courtesy of KIA MOTORS AMERICA, INC.

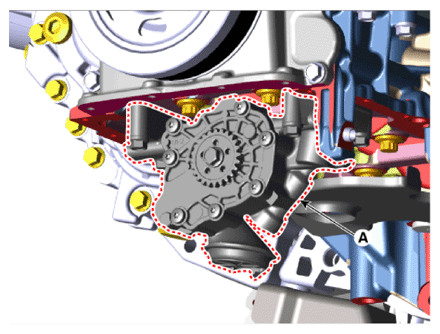

Remove the oil pump (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Refill with the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
Start engine and check for leaks.
Recheck the engine oil level.
