Removal And Installation
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
- Disconnect the solenoid valve wiring for oil pressure control from the engine.

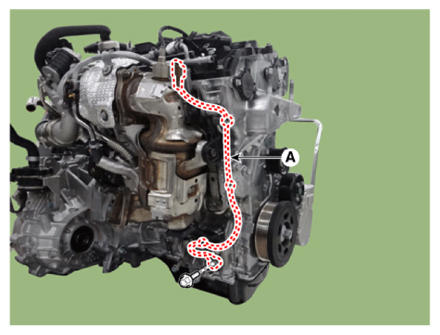

- Remove the oil pressure control solenoid valve (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
NOTE: When install the oil pressure control solenoid valve, apply the engine oil to the O-ring - Install in the reverse order of removal.
