Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - ENGINE ROOM UNDER COVER ")
Drain the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
Remove the oil pan.

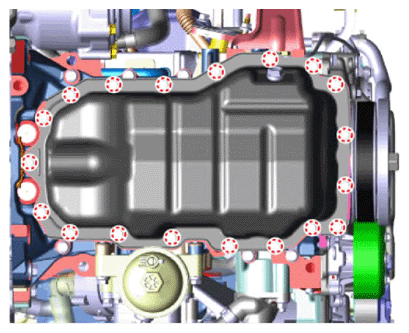

Remove the oil pan bolt

Courtesy of KIA MOTORS AMERICA, INC.

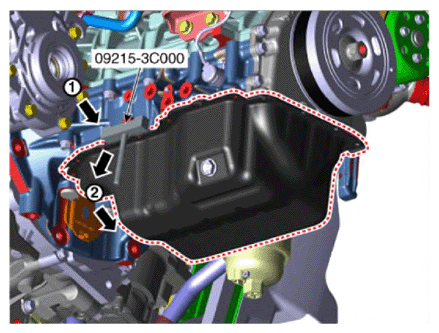

Using the SST (09215-3C000), remove the oil pan (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the oil pan, be careful not to damage the mating surface between the lower crankcase and oil pan using

CAUTION:

Insert the SST between the oil pan and the lower crankcase by tapping it with a plastic hammer in the direction of the arrow.
After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove the oil pan from the lower crankcase.
