Repair Procedures: Removal
- Use fender covers to avoid damaging painted surfaces.
- To avoid damaging the cylinder head, wait until the engine cools down to room temperature before removing the cylinder head.
- When handling a metal gasket, take care not to fold the gasket or damage the contact surface of the gasket.
- Carefully disconnect the connector to prevent damage.
Information
Mark all wiring and hoses to avoid misconnection.
- Disconnect the battery negative terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
- Shut off the high voltage circuit.
(Refer to General Information - "HIGH VOLTAGE SHUT-OFF PROCEDURES ")
- Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain the engine oil.
(Refer to Lubrication - "ENGINE OIL ")
- Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
- Drain the inverter coolant.
(Refer to Hybrid Motor System - "COOLANT ")
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

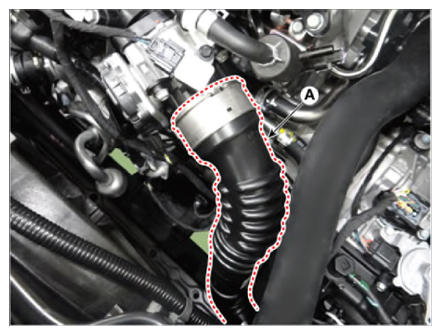

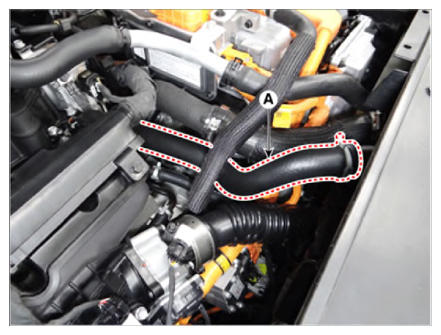

- Disconnect the intercooler inlet hose (A).

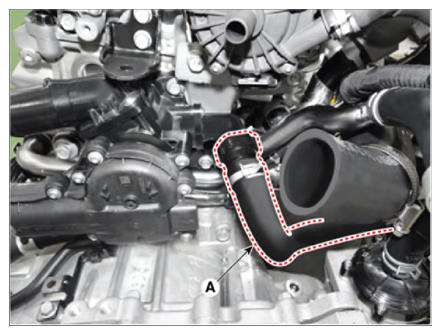

- Disconnect the radiator upper hose (A).

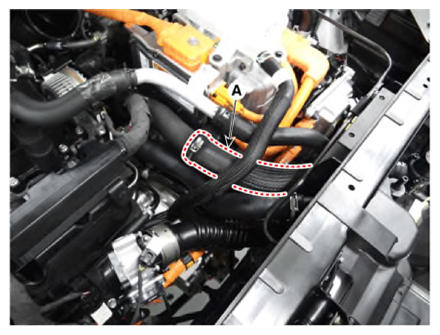

- Disconnect the radiator lower hose (A).

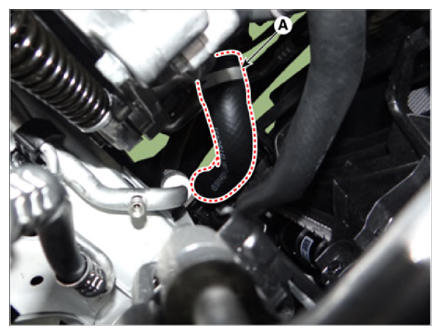

- Disconnect the heater hose (A).
- Remove the oil level gauge.
(Refer to Lubrication System - "OIL LEVEL GAUGE ")
- Remove the engine control module (ECM).
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
- Remove the hybrid power control unit (HPCU).
(Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT (HPCU) ")
- Remove the intake manifold.
(Refer to Intake and Exhaust System - "INTAKE MANIFOLD ")
- Remove the delivery pipe.
(Refer to Engine Control/Fuel System - "DELIVERY PIPE ")
- Remove the front muffler.
(Refer to Intake and Exhaust System - "MUFFLER ")
- Remove the EGR cooler.
(Refer to Intake and Exhaust System - "EGR COOLER ")
- Remove the turbo manifold module.
(Refer to Intake and Exhaust System - "TURBO MANIFOLD MODULE ")
- Remove the cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")
- Remove the active purge pump.
(Refer to Evaporative Emission Control System - "ACTIVE PURGE PUMP ")
- Remove the integrated thermal management module (ITM).
(Refer to Cooling System - "INTEGRATED THERMAL MANAGEMENT MODULE (ITM) ")

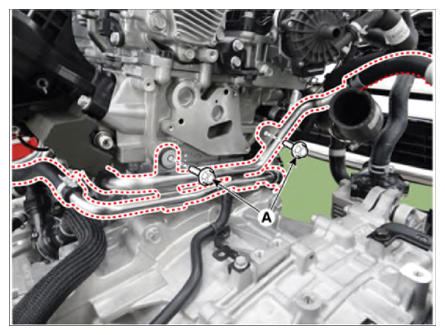

- Remove the heater pipe mounting bolts (A).
- Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
- Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")
- Remove the intake and exhaust CVVT And camshaft.
(Refer to Cylinder Head Assembly - "CVVT And CAMSHAFT ")

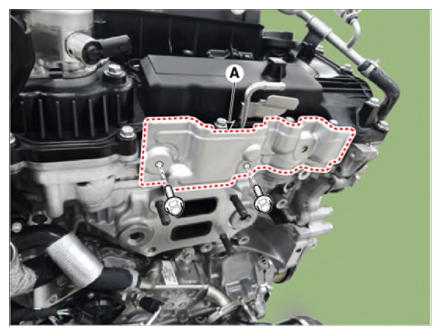

- Remove the cylinder head cover heat protector (A).
- Remove the turbocharger water outlet hose and pipe (A).

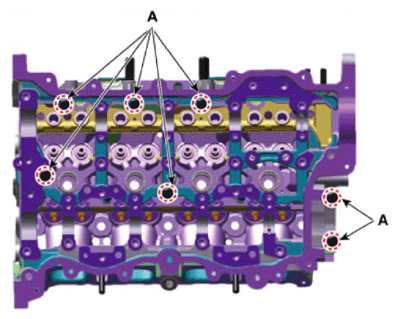

- Remove the cam carrier mounting bolts (A).
- Remove the cam carrier (A).

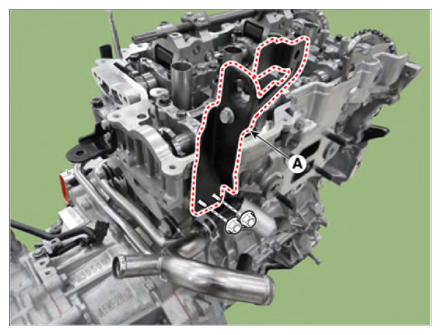

- Remove the rear engine hangers (A).

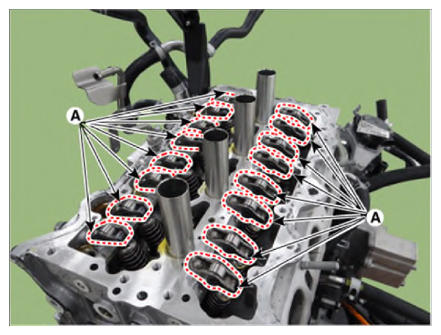

- Remove the hydraulic lash adjuster (HLA) (A).
- Remove the cylinder head bolts and remove the cylinder head.

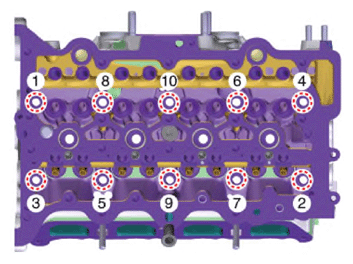

- Using a socket, divide the cylinder head bolts 2-3 times in the sequence shown below
NOTE:
- Removing cylinder head bolts in an incorrect order may result in head warpage or crack.

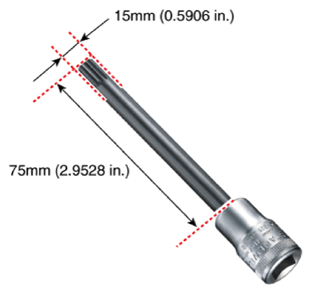

- Use decagonal driver socket that has under 15 mm (0.5906 in.) external diameter and longer than 75 mm (2.9528 in.) cylinder to not have interference between cylinder head and decagonal driver socket when the cylinder head bolt removal.

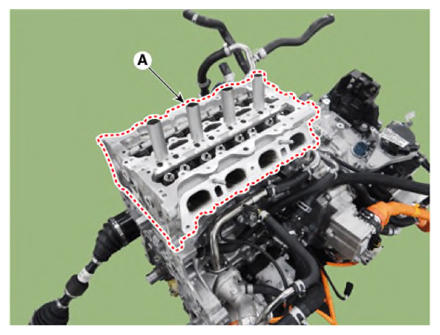

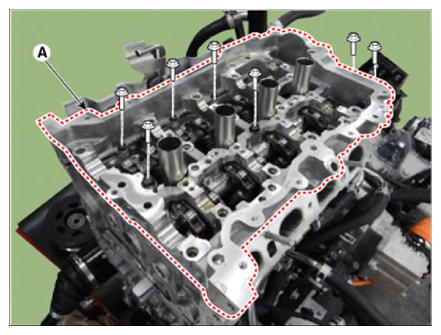

- Lift the cylinder head (A) from the cylinder block and put the cylinder head on wooden blocks.NOTE: Be careful not to damage the contact surfaces of the cylinder head and cylinder block.

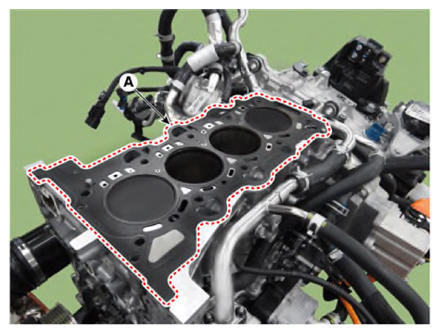

- Remove the cylinder head gasket (A).
