Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valves.

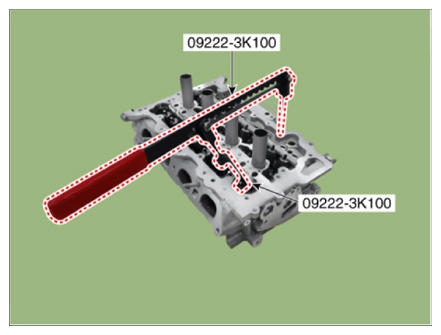

  1. Using the SST (09222-3K000, 09222-3K100), remove the valve.
    G14937054Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When installing the special tool, insert the front holder directly into the cylinder head upper bolt hole and secure it.
  2. Remove the retainer (B).
  3. Remove the valve spring (C).
  4. Remove the valve (E).
  5. Remove the stem seal (D) and the valve spring seat (F) using the long nose pliers.
G14937055Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • Always use new valve stem seals.
  • Be careful not to change the position of the inlet and exhaust valves.
