Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Use fender covers to avoid damaging painted surfaces.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

Information

Mark all wiring and hoses to avoid misconnection.

Disconnect the battery negative terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

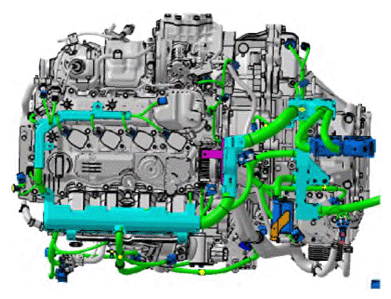

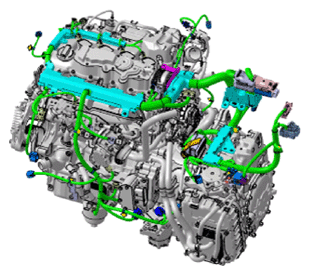

Disconnect the engine wiring connectors and harness clamps around the cylinder head cover.
Then, remove the connector brackets and wiring protector.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

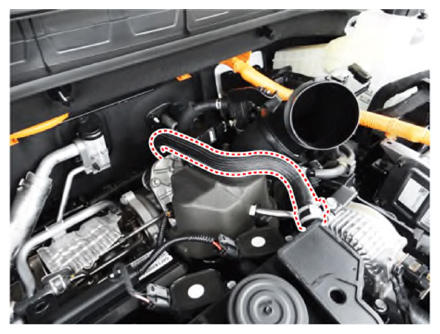

Remove the breather hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the high pressure fuel pump.
(Refer to Engine Control/Fuel System - "HIGH PRESSURE FUEL PUMP ")
Remove the ignition coils.
(Refer to Engine Electrical System - "IGNITION COIL ")
Remove the CVVD actuator.
(Refer to Engine Control/Fuel System - "CVVD ACTUATOR ")

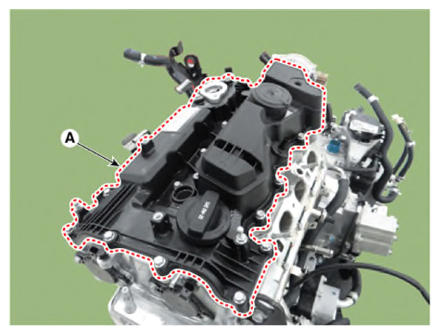

Remove the cylinder head cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Remove the bolts in the order shown below.

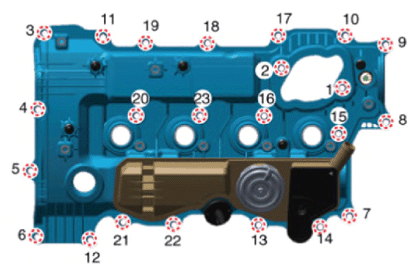

Fig 1: Cylinder Head Cover Bolts Loosening Sequence

Courtesy of KIA MOTORS AMERICA, INC.
