Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

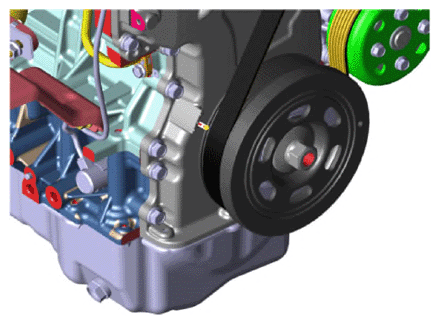

Turn the crankshaft decoupler so that No. 1 piston is at top dead center. turn the crankshaft decoupler and align its groove with the timing mark on the timing chain cover.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")

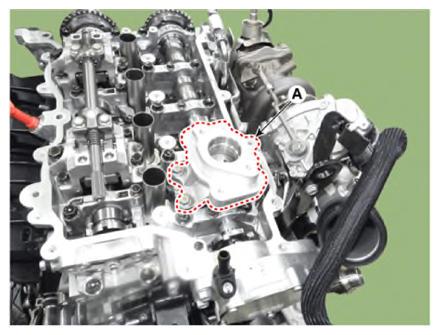

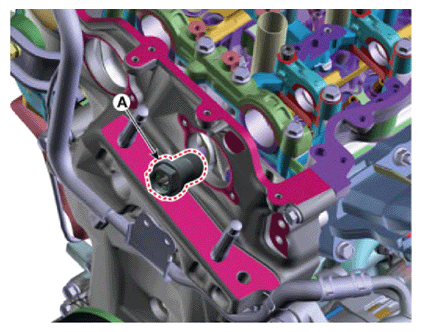

Remove the high pressure fuel pump bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

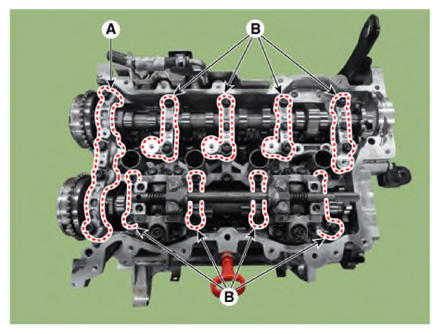

Remove the camshaft front bearing cap (A) and camshaft bearing caps (B).

Courtesy of KIA MOTORS AMERICA, INC.

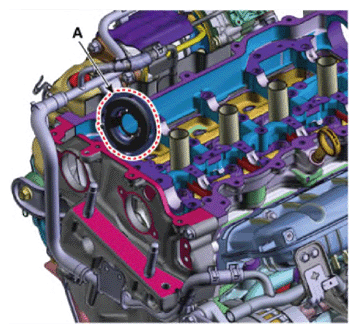

Remove the intake and exhaust OCV And center bolt (A).

[Intake OCV And center bolt]

Courtesy of KIA MOTORS AMERICA, INC.

[Exhaust OCV And center bolt]

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Be careful not to allow foreign objects to enter the intake/exhaust OCV And Center bolts.

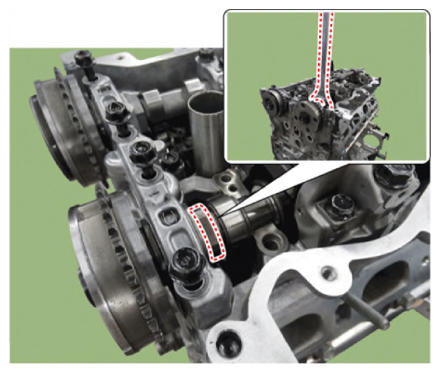

When removing the intake and exhaust OCV And Center bolts, secure the hexagonal bolts with a wrench to prevent the camshaft from rotating.

[Intake]

Courtesy of KIA MOTORS AMERICA, INC.

[Exhaust]

Courtesy of KIA MOTORS AMERICA, INC.

Remove the CVVD assembly.

[When SST (0K240-P4100) is available]

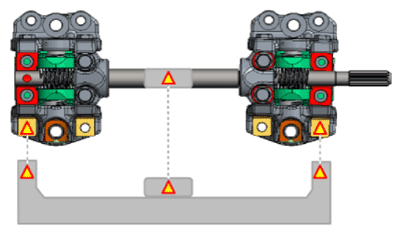

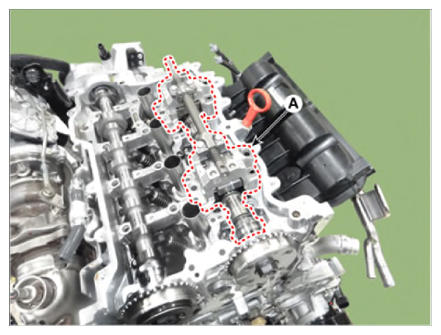

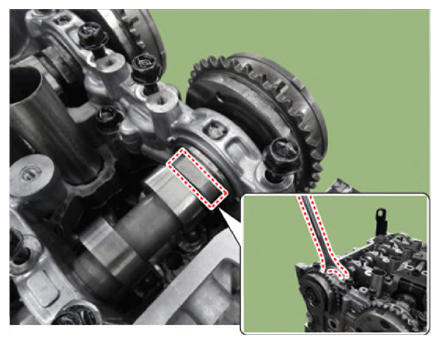

Install the CVVD fixture (A) on the camshaft and CVVD assembly.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

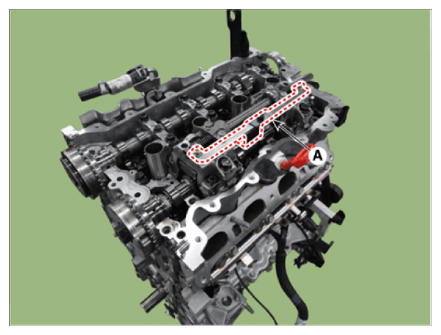

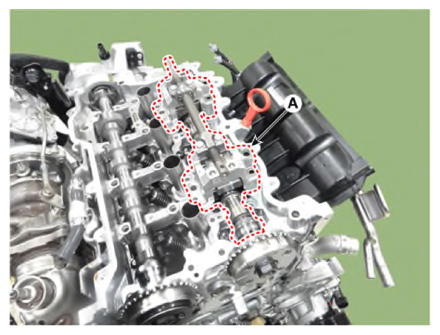

Remove the CVVD assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

After removing the CVVD assembly, make sure that there is no separation of components such as the lifter and the cam.
Do not damage the CVVD assembly components.

[If the CVVD fixture can't be used]

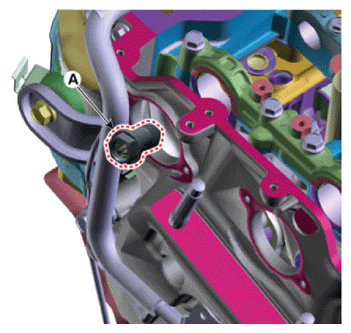

Remove the intake CVVT (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the exhaust camshaft (A).

Courtesy of KIA MOTORS AMERICA, INC.

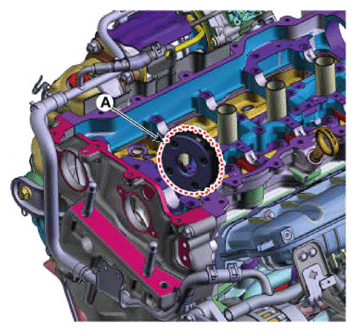

Remove the exhaust CVVT (A).

Courtesy of KIA MOTORS AMERICA, INC.

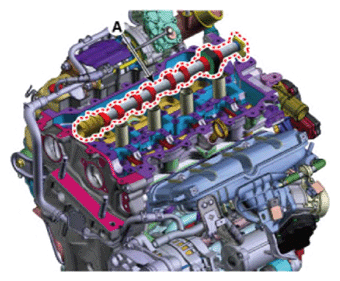

Remove the exhaust camshaft (A).

Courtesy of KIA MOTORS AMERICA, INC.
