Special Service Tool

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Tool Name / Number Illustration Description

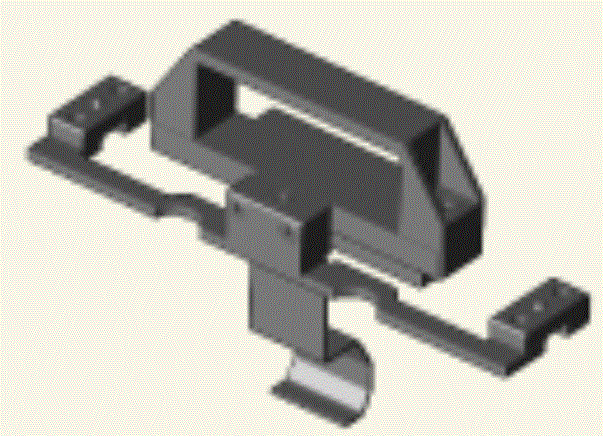

CVVD fixing jig
0K240-P4100
G00671841Courtesy of KIA MOTORS AMERICA, INC.
 For CVVD assembly removal and install


Tool Name / Number Illustration Description
CVVD fixing jig
0K240-P4100
G00671841Courtesy of KIA MOTORS AMERICA, INC.
 For CVVD assembly removal and install
