Operation Principle

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

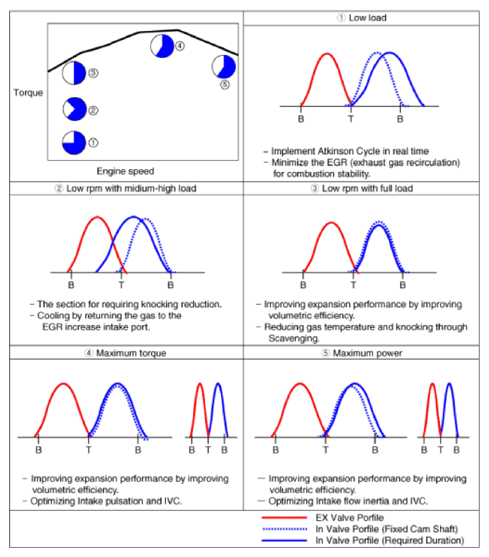

[CVVD System Operating Mode]

Optimum Valve Timing by Engine Load

G14937010Courtesy of KIA MOTORS AMERICA, INC.
