Description And Operation: Description
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

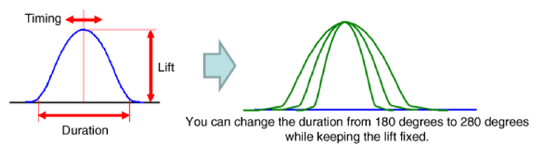

The CVVD (Continuous Variable Valve Duration) system is a system that continuously changes the opening time of the intake valve according to operating conditions.
 Courtesy of KIA MOTORS AMERICA, INC.
|

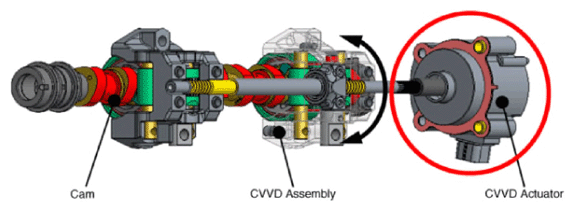

The structure is divided into a cam section, CVVD mechanism section, and CVVD actuator.
 Courtesy of KIA MOTORS AMERICA, INC.
|
