Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

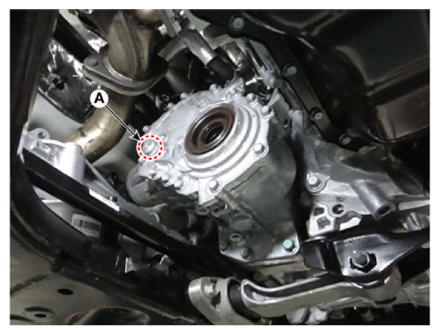

Remove the drain plug (A) and wait for over 10 minutes until the oil is drained enough and then reinstall the drain plug.
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil filler plug gasket must be replaced with a new one (do not reuse).

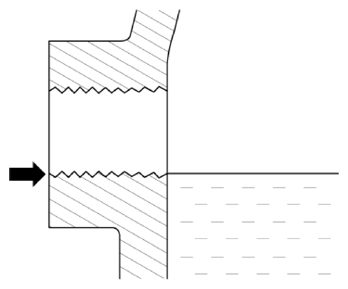

Fill the transfer case with oil through the filler plug hole after removing the filler plug (A).
Recommended oil: Hypoid gear oil API GL-5, SAE 75W/85 (SK HCT-5 75W/85 or equivalent)

Capacity: 0.65 1 (0.17 U.S.gal, 0.69 U.S.qt, 0.57 Imp.qt)

Courtesy of KIA MOTORS AMERICA, INC.
Install the filler plug (A).
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil filler plug gasket must be replaced with a new one (do not reuse).
Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
