Oil Seal (Transaxle Side)

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case assembly.

    (Refer to Transfer Case Assembly - "FRONT WHEEL TRANSFER CASE ASSEMBLY ")

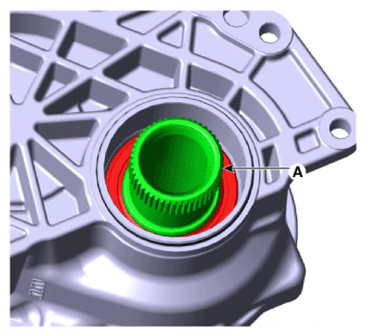

  2. Remove the transfer case assembly transaxle side oil seal (A).
    G14957565Courtesy of KIA MOTORS AMERICA, INC.

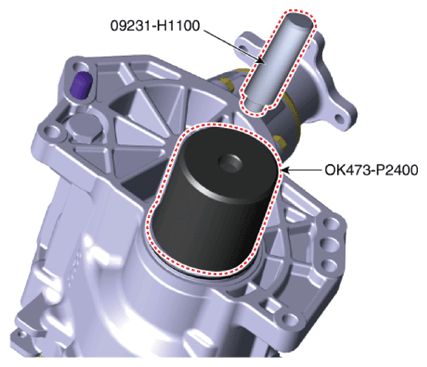

  3. Install the oil seal with a new one by using the special service tools (0K473 - P2400, 09231 - H1100).
    G14957566Courtesy of KIA MOTORS AMERICA, INC.
  4. If the transfer case oil is leaking, add the transfer case with oil.

    (Refer to All Wheel Drive System - "TRANSFER CASE OIL ")

  5. Install the transfer case assembly.

    (Refer to Transfer Case Assembly - "FRONT WHEEL TRANSFER CASE ASSEMBLY ")
