Oil Seal #2 (Drive Shaft Side)

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front driveshaft [RH].

    (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")

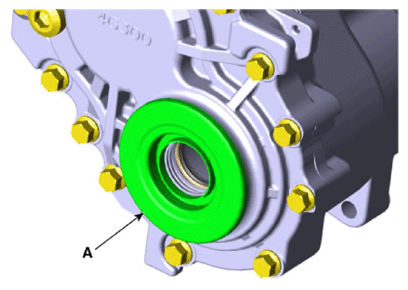

  2. Remove the dust cover (A).
    G14957557Courtesy of KIA MOTORS AMERICA, INC.

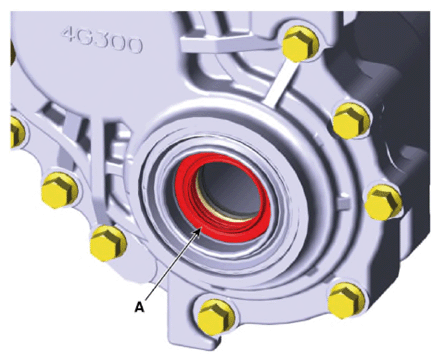

  3. Remove the oil seal #2 (A).
    G14957558Courtesy of KIA MOTORS AMERICA, INC.

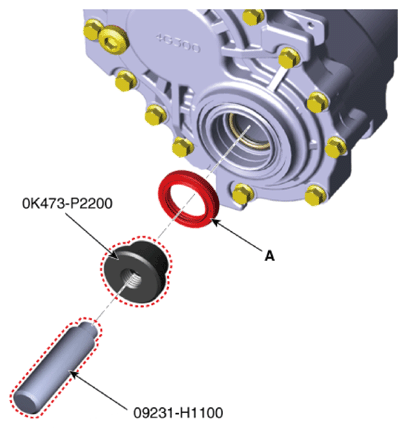

  4. Install the oil seal #2 with a new one by using the special service tools (0K473 - P2200, 09231 - H1100).
    G14957559Courtesy of KIA MOTORS AMERICA, INC.
  5. Install the dust cover with a new one.
  6. If the transfer case oil is leaking, add the transfer case with oil.

    (Refer to All Wheel Drive System - "TRANSFER CASE OIL ")

  7. Install the front driveshaft [RH].

    (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")
