Description And Operation: Description

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

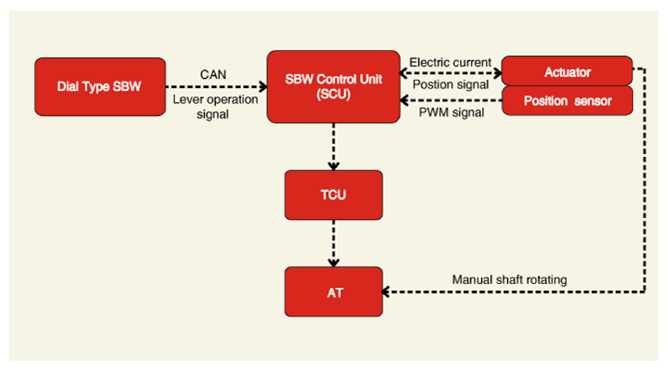

Controls the four (4) P, R, N, D positions using the rotation of the motor of according to the electric signal when the shift button is operated.

G14957289Courtesy of KIA MOTORS AMERICA, INC.
