Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the reverse order of removal.
    NOTE: The existing valve body cover gasket (A) must be replaced with a new one (do not reuse).
    G14957512Courtesy of KIA MOTORS AMERICA, INC.
  2. Perform the procedures below after installing it.
    1. Refill the automatic transaxle with fluid.

      (Refer to Hydraulic System - "FLUID ")

    2. Refill the engine And transaxle system with coolant.

      (Refer to Engine Mechanical System - "COOLANT ")

    3. Refill the hybrid motor cooling system with coolant and then perform the air bleeding using the KDS.

      (Refer to Hybrid Motor System - "COOLANT ")

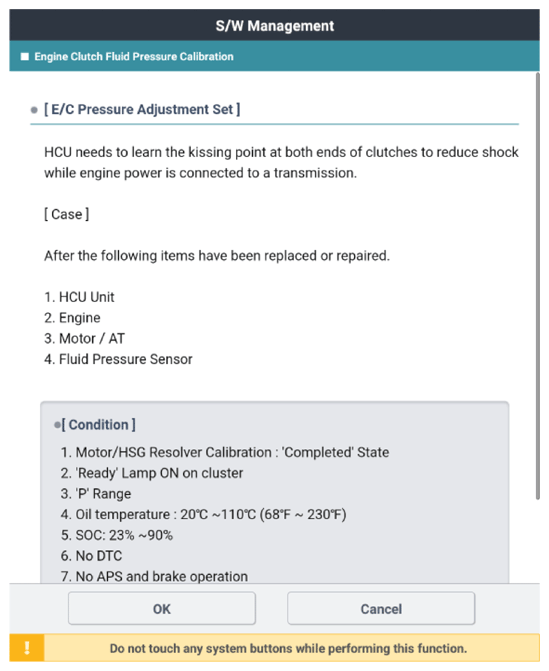

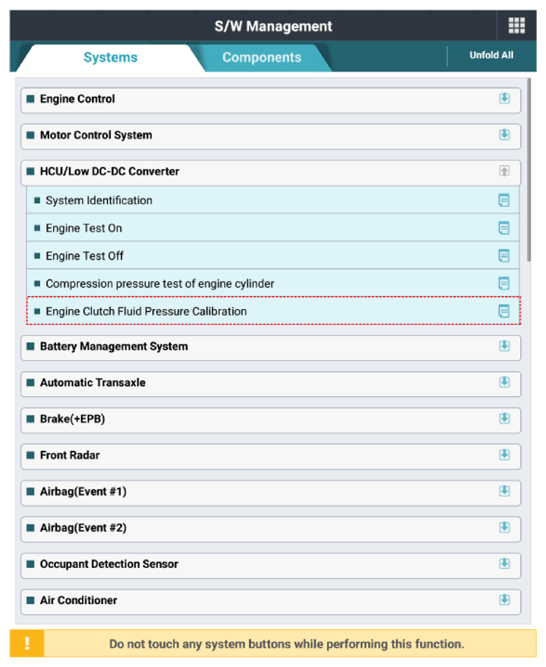

    4. Perform the engine clutch fluid pressure calibration using the KDS.
      G14957513Courtesy of KIA MOTORS AMERICA, INC.
      G14957514Courtesy of KIA MOTORS AMERICA, INC.
    5. Clear the diagnostic trouble codes (DTC) using the KDS.

      (Disconnecting the battery negative terminal will not clear the DTC.)

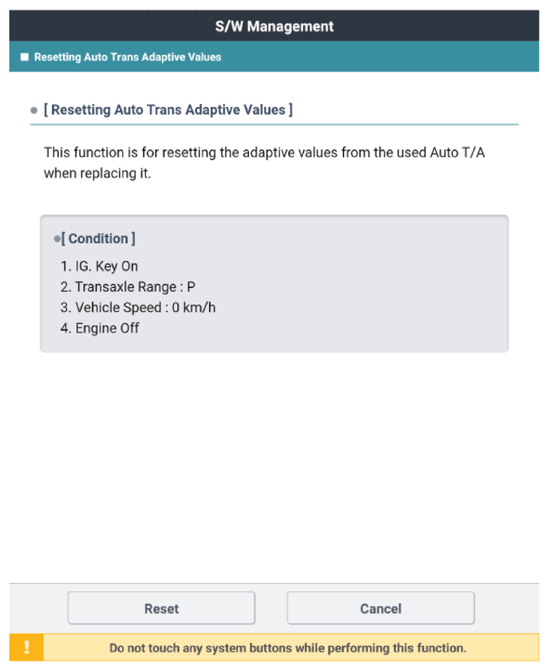

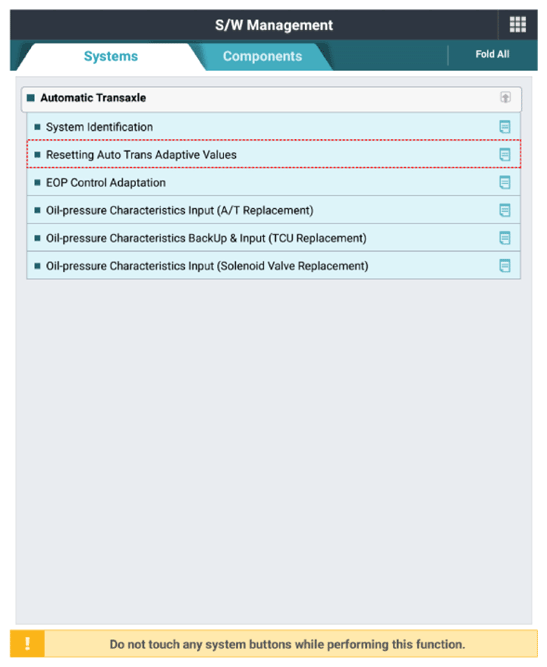

    6. Reset the automatic transaxle adaptive values using the KDS.
      G14957515Courtesy of KIA MOTORS AMERICA, INC.
      G14957516Courtesy of KIA MOTORS AMERICA, INC.
    7. Confirm that there is no fluid leakage on connections in the engine starting condition.
    8. Perform the TCM adaptive values learning procedure.

      (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
