Component Location

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

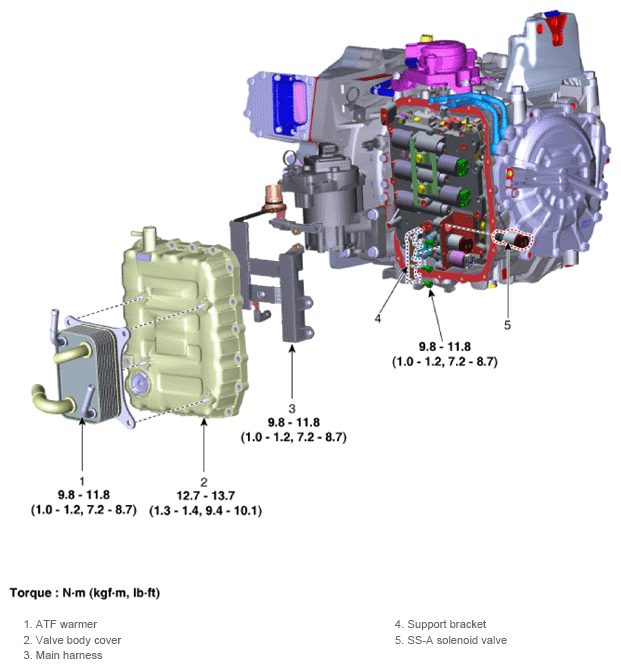

Fig 1: SS-A Solenoid Valve (ON/OFF) Components Location With Torque Specification
G14957488Courtesy of KIA MOTORS AMERICA, INC.
