Solenoid Valve Oil-Pressure Characteristics Input Procedure

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

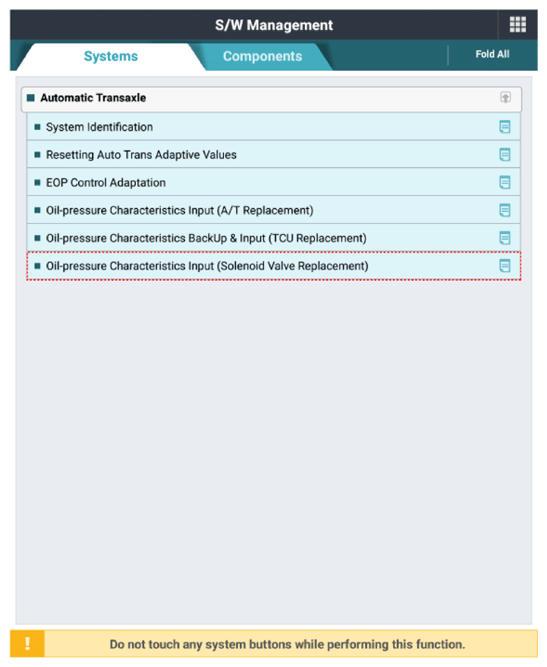

  1. Perform the oil-pressure characteristics input procedure using the KDS.
    G14957336Courtesy of KIA MOTORS AMERICA, INC.

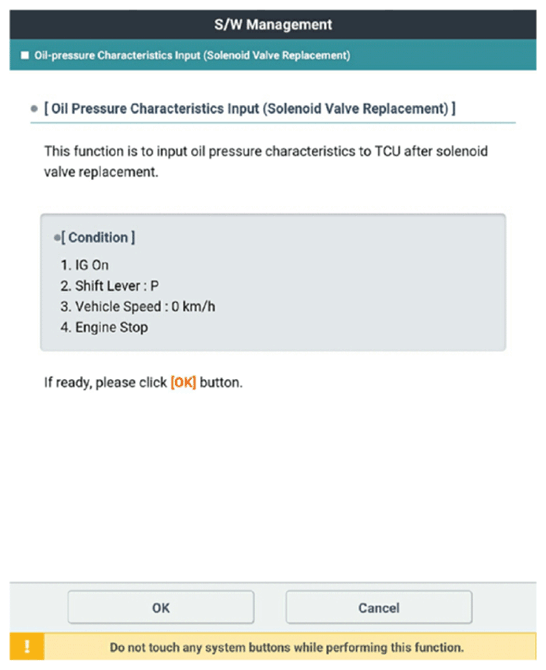

  2. Click the "OK" button after checking the condition.
    G14957337Courtesy of KIA MOTORS AMERICA, INC.

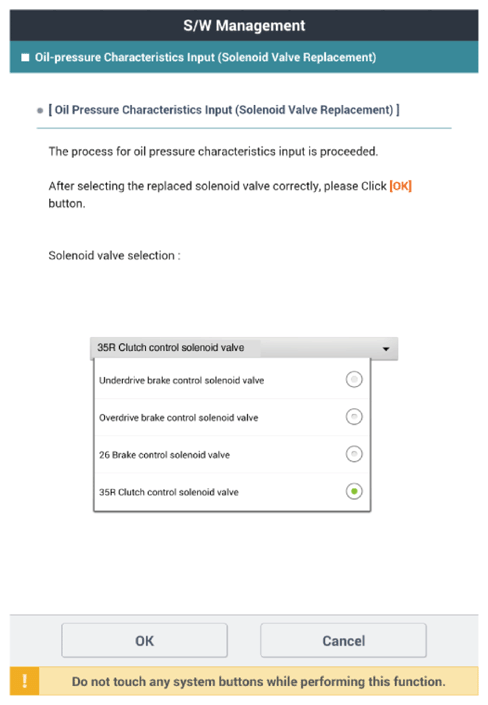

  3. Click the "OK" button after selecting the replaced solenoid valve.
    G14957338Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the code that was recorded before installing the new solenoid valve.
    G14957339Courtesy of KIA MOTORS AMERICA, INC.

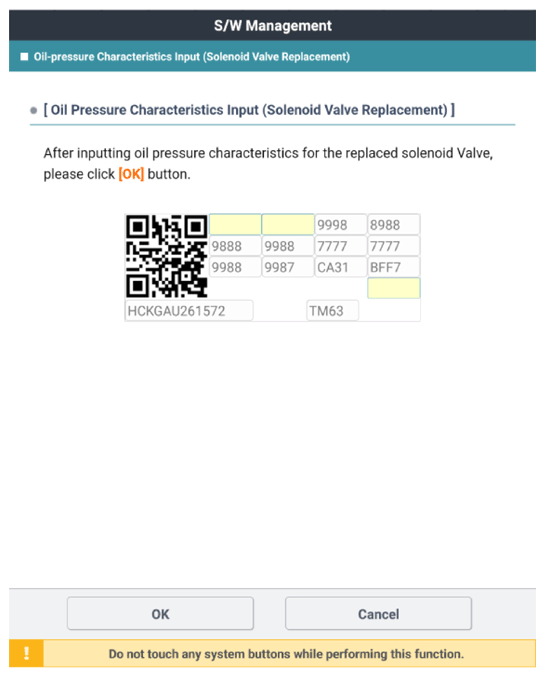

  5. Click the "OK" button after inputting oil pressure characteristics for the replaced solenoid valve.
    G14957340Courtesy of KIA MOTORS AMERICA, INC.
