Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Shut off the high voltage circuit.
(Refer to Automatic Transaxle System - "HIGH VOLTAGE SHUT-OFF PROCEDURE ")
Drain the coolant of hybrid motor cooling system.
(Refer to Hybrid Motor System - "COOLANT ")

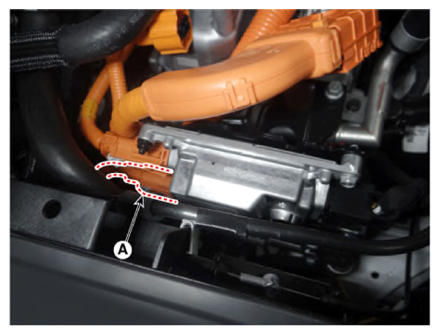

Disconnect the OPU high voltage cable connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: How to disconnect the connector

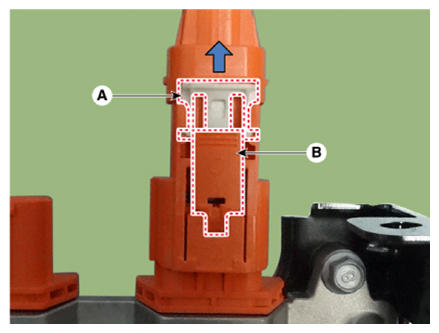

Pull the locking lever (A), then push down on tab (B).

Courtesy of KIA MOTORS AMERICA, INC.

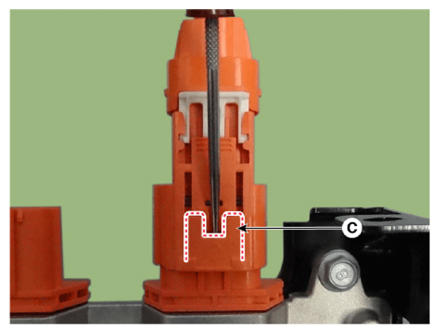

Pull the connector while raising the hook (C) using driver.

Courtesy of KIA MOTORS AMERICA, INC.

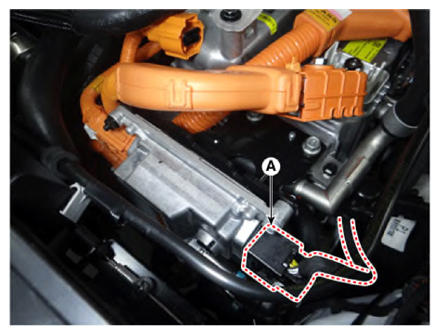

Disconnect the OPU connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

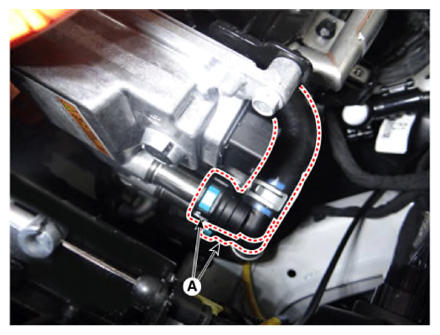

Separate the cooling hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

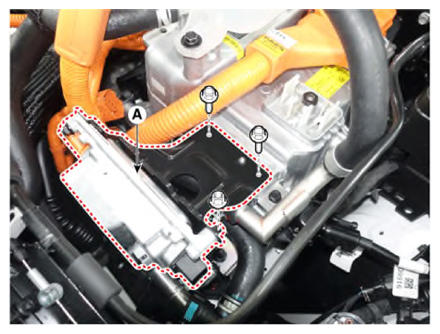

Remove the OPU (A) by removing the bolts.
Tightening torque:

21.6 - 23.5 N.m (2.2 - 2.4 kgf.m, 15.9 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
