Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
  • Be sure to shut off the high voltage circuit according to the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system to avoid serious electrical injuries.
  1. Remove the under cover.

    (Refer to Engine Mechanical System - "Engine Room Under cover")

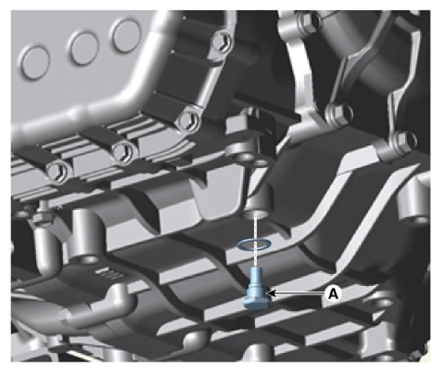

  2. Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.

    Tightening torque:

    33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb.ft)

    G14957346Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The existing ATF drain plug gasket must be replaced with a new one (do not reuse).
  3. Remove the ATF plug (A).

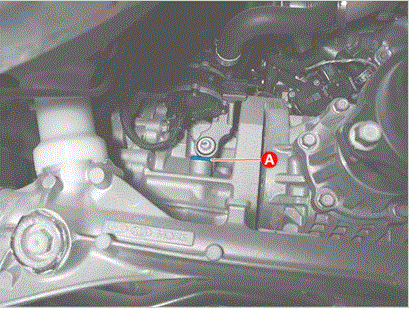

    G14936762Courtesy of KIA MOTORS AMERICA, INC.
  4. Fill about 5.0 l of the ATF SP4M-1 through the ATF plug hole.

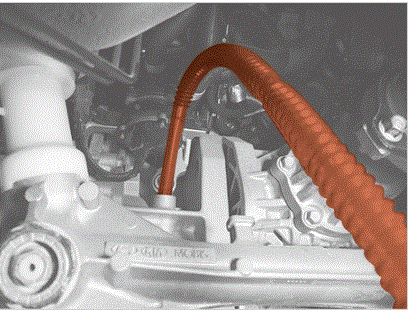

    G14936763Courtesy of KIA MOTORS AMERICA, INC.
  5. Perform the ATF level check procedure.

    (Refer to Fluid - "Inspection")
