Automatic Transaxle Fluid (ATF) Level Check

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
  • Be sure to shut off the high voltage circuit according to the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system to avoid serious electrical injuries.

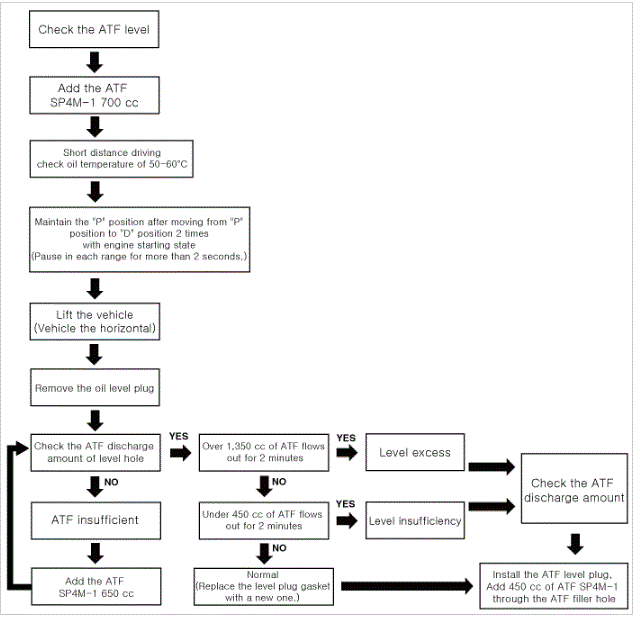

G00671884Courtesy of KIA MOTORS AMERICA, INC.
  1. Remove the engine room under cover.

    (Refer to ("ENGINE ROOM UNDER COVER ")

  2. Remove the ATF plug (A).
    G14936762Courtesy of KIA MOTORS AMERICA, INC.
  3. Add 0.7 l of ATF SP4M-1 through the ATF plug hole.
    G14936763Courtesy of KIA MOTORS AMERICA, INC.
  4. Start the engine to warm up the ATF.
    NOTE: Do not step on the brake and accelerator simultaneously to warm up the ATF.
  5. Check by using KDS that the temperature of the ATF is between 50°C and 60°C (122-140°F).
  6. Move the dial type SBW slowly from "P" to "D", then back to "P". Repeat this sequence a total of two times and then move the shift lever to "P" position.
    NOTE: Pause in each range for more than 2 seconds.
  7. Remove the ATF level plug (A).
    G14936764Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When removing the ATF level plug, keep the vehicle on a level ground.
  8. Check the ATF level.

    Normal  : ATF flows out in a thin oil stream.

    Excessive (abnormal):  Over 0.9 liters of ATF flows out for 2 minutes.

    Insufficient (abnormal):  There is no fluid flow.

    NOTE: If the ATF level is too high or low, follow the instructions below.
    • Excessive: Drain until the ATF flows out in a thin oil stream.
    • Insufficient: Add until the ATF flows out in a thin oil stream.

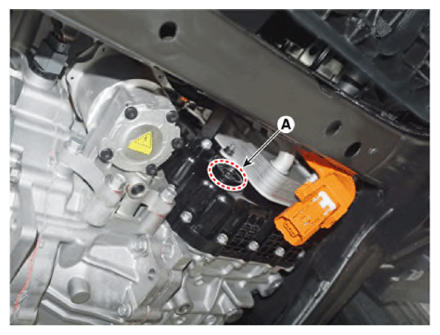

  9. Install the ATF level check plug (A).
    G14936765Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The existing ATF level plug O-ring must be replaced with a new one. (Do not reuse it.)

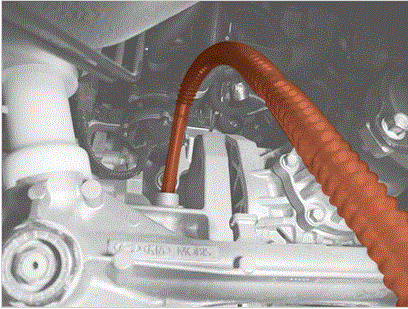

  10. Add 0.45 liters of ATF SP4M-1 through the ATF plug hole.
    G14936766Courtesy of KIA MOTORS AMERICA, INC.

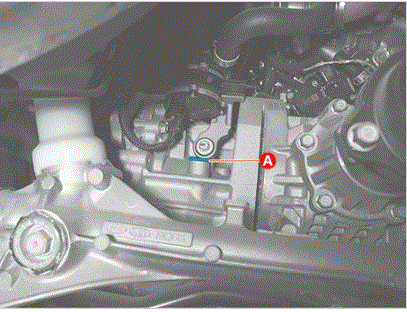

  11. Install the ATF plug (A).

    Tightening torque :

    34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb.ft)

    G00671885Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The existing ATF plug gasket must be replaced with a new one (do not reuse).
  12. Install the engine room under cover.

    (Refer to ("ENGINE ROOM UNDER COVER ")
