Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Be sure to read and follow the "GENERAL SAFETY INFORMATION And CAUTION " before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
Be sure to shut off the high voltage circuit according to the "High Voltage Shut-off Procedures" before doing any work related with the high voltage system to avoid serious electrical injuries.

Shut off the high voltage circuit.
(Refer to Automatic Transaxle System - "HIGH VOLTAGE SHUT-OFF PROCEDURE ")
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

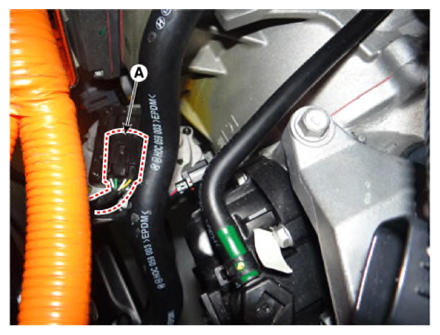

Disconnect the EOP connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

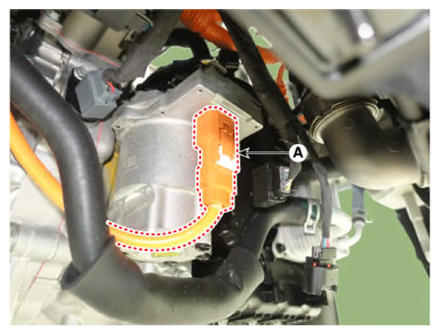

Disconnect the EOP high voltage connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: How to disconnect the connector

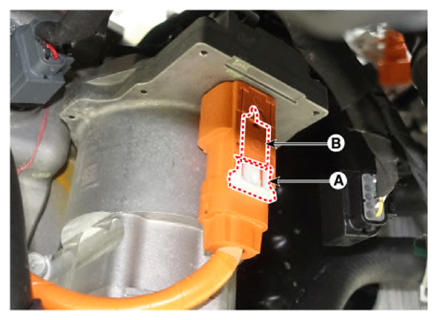

Pull the it while pushing hook (B) after releasing the lock pulling the lever (A).

Courtesy of KIA MOTORS AMERICA, INC.

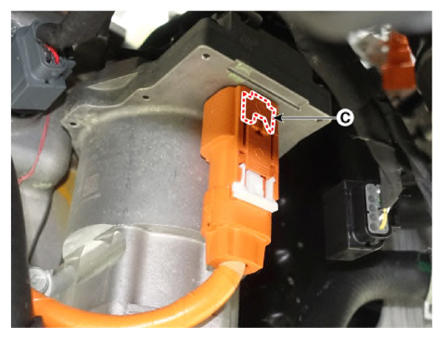

Pull the connector while raising the hook (C) using flat-tip screwdriver or remover.

Courtesy of KIA MOTORS AMERICA, INC.

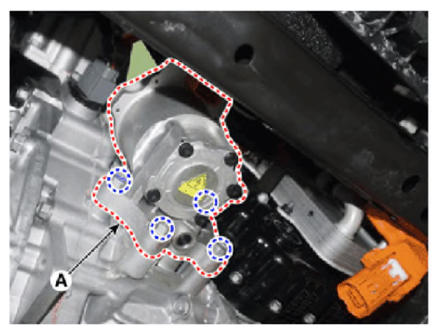

Remove the EOP (A) by removing the bolts.
Tightening torque:

42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Information

ATF can be reused. Collect it in a clean beaker.
