Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the reverse order of removal.
    NOTE:

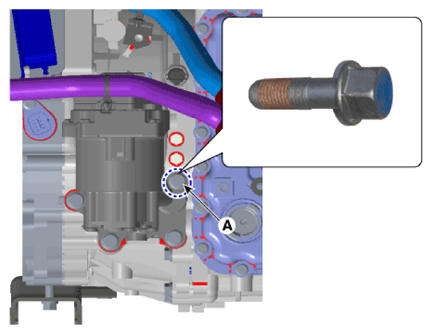

    • The existing flange seal bolt must be replaced with a new one (do not reuse).
    G14957358Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the ATF level after refilling the automatic transaxle with fluid.

    (Refer to Hydraulic System - "FLUID ")

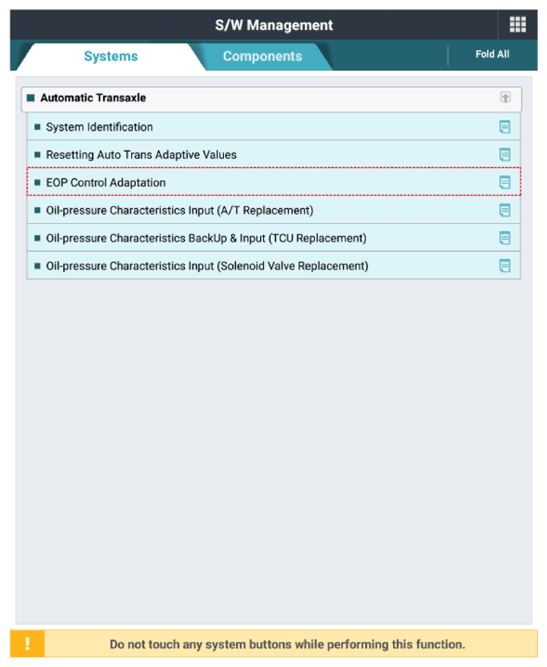

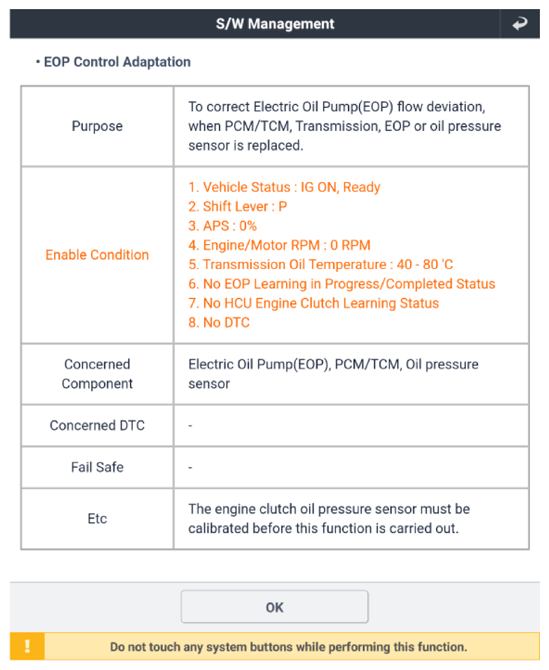

  3. Perform EOP control adaptation procedure using the KDS.
    G14957359Courtesy of KIA MOTORS AMERICA, INC.
    G14957360Courtesy of KIA MOTORS AMERICA, INC.
