Repair Procedures: Installation
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

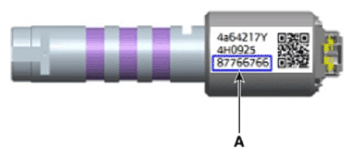

- Install in the reverse order of removal.NOTE: Check the code (oil pressure characteristics value) at the first before installing the solenoid valve.
The existing valve body cover gasket (A) must be replaced with a new one (do not reuse).
- Perform the procedures below after installing it.
- Refill the automatic transaxle with fluid.
(Refer to Hydraulic System - "FLUID ")
- Refill the engine And transaxle system with coolant.
(Refer to Engine Mechanical System - "COOLANT ")
- Refill the hybrid motor cooling system with coolant and then perform the air bleeding using the KDS.
(Refer to Hybrid Motor System - "COOLANT ")

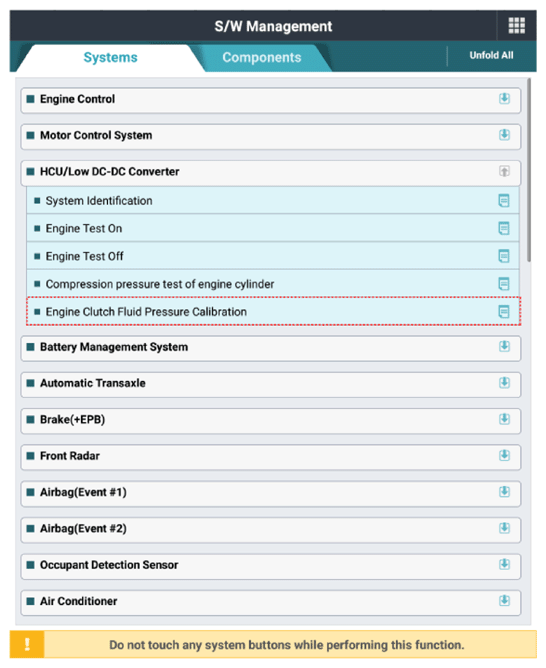

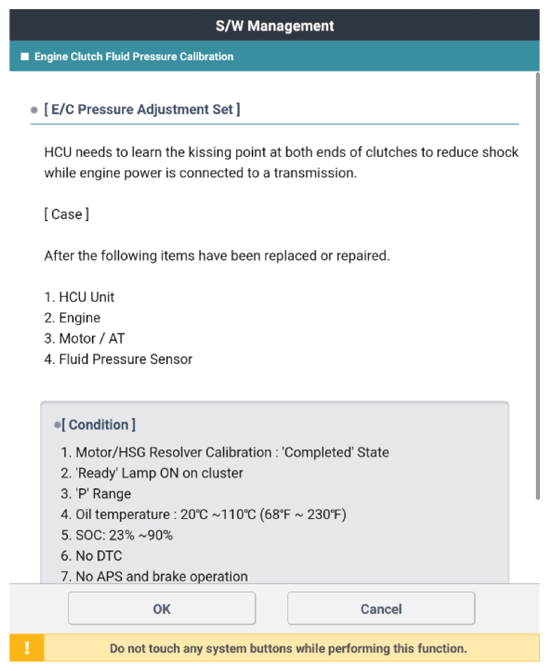

- Perform the engine clutch fluid pressure calibration using the KDS.
- Clear the diagnostic trouble codes (DTC) using the KDS.
(Disconnecting the battery negative terminal will not clear the DTCs.)

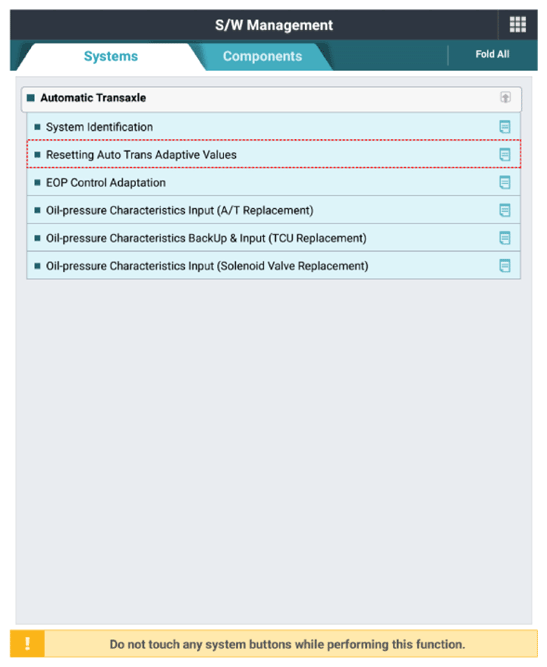

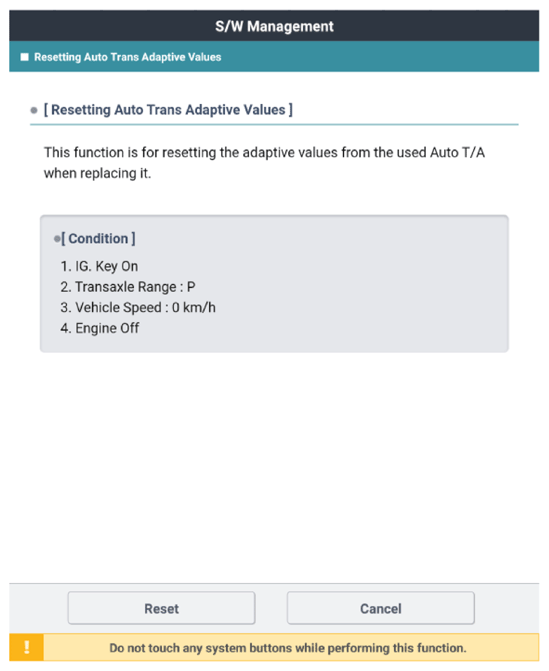

- Reset the automatic transaxle adaptive values using the KDS.
- Perform the oil pressure characteristics input procedure using the KDS.
(Refer to Hydraulic System - "OIL-PRESSURE CHARACTERISTICS INPUT ")
- Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
- Confirm that there is no fluid leakage on connections in the engine starting condition.
- Refill the automatic transaxle with fluid.
