Rear Wiper Motor

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wiper.

    (Refer to Wiper/Washer - "WIPER ARM ")

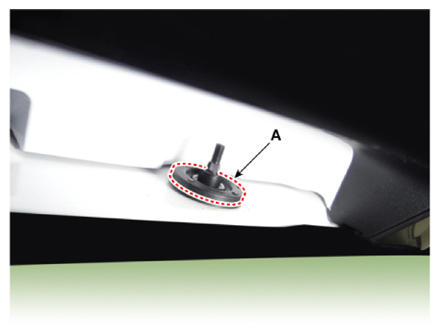

  2. Remove the rear wiper motor grommet (A).
    G14958789Courtesy of KIA MOTORS AMERICA, INC.

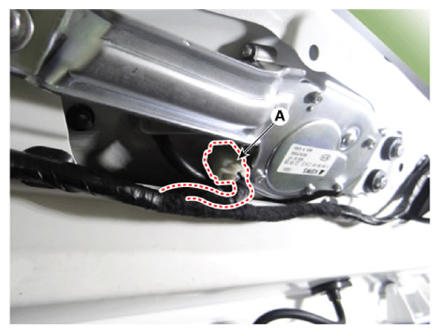

  3. Disconnect the rear wiper motor connector (A).
    G14958790Courtesy of KIA MOTORS AMERICA, INC.

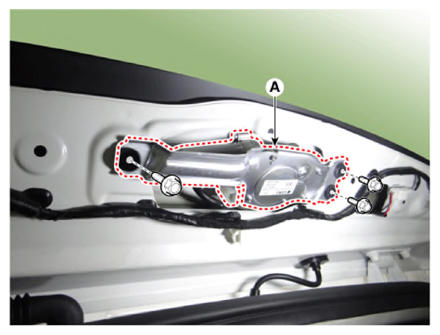

  4. Remove the rear wiper motor & link assembly (A) after removing the bolts.

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

    G14958791Courtesy of KIA MOTORS AMERICA, INC.
