Rear Wiper Arm
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

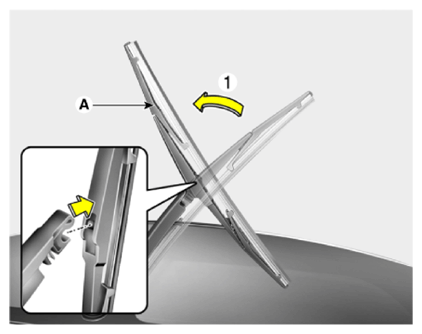

- If necessary, remove the blade by pushing it in the direction arrow after opening the hook (A).
Information
- Move the windshield glass wiper blades to the service position as follows;
After turning off the engine, move the wiper switch to the single wiping (MIST) position within 20 seconds and hold the switch more than 2 seconds until the wiper blade is in the service position.
- After turning ignition to the ON position, move the wiper switch to the single wiping (MIST) and wiper arms will return to the normal operating position.
- Move the windshield glass wiper blades to the service position as follows;

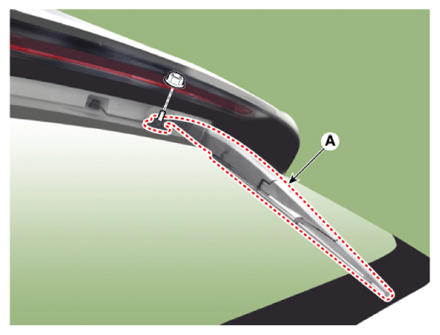

- Remove the wiper arms (A) by removing the nuts after removing the caps.
Tightening torque:
8.8 - 12.7 N.m (0.9 - 1.3 kgf.m, 6.5 - 9.4 lb.ft)
