Front Wiper Arm

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

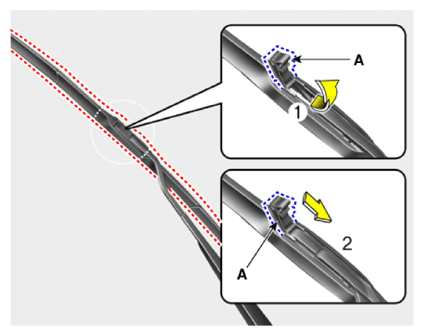

If necessary, remove the blade by pushing it in the direction arrow after opening the hook (A).
Information
- Move the windshield glass wiper blades to the service position as follows; After turning off the engine, move the wiper switch to the single wiping (MIST) position within 20 seconds and hold the switch more than 2 seconds until the wiper blade is in the service position.
- After turning ignition to the ON position, move the wiper switch to the single wiping (MIST) and wiper arms will return to the normal operating position.
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiper arms (A) by removing the nuts after removing the caps.
Tightening torque:

22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
