Washer Fluid Level Sensor

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

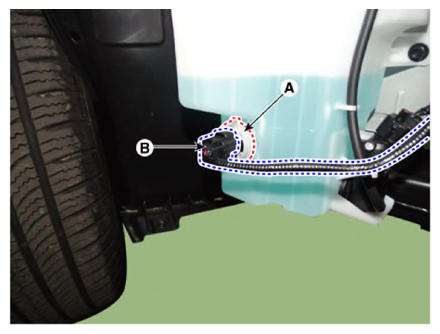

  3. Remove the washer fluid level sensor (A) after disconnecting the connector (B).
    G14958796Courtesy of KIA MOTORS AMERICA, INC.
