Repair Procedures: Removal: Reservoir

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the right side front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")
Remove the reservoir.

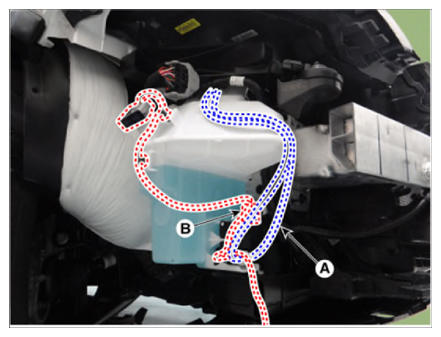

1. Separate the washer nozzles (A).
2. Disconnect the washer motor connector (B).
3. Remove the reservoir (D) after removing the mounting bolts.
