Washer Fluid Level Sensor

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Drain the washer fluid less than 650 cc.

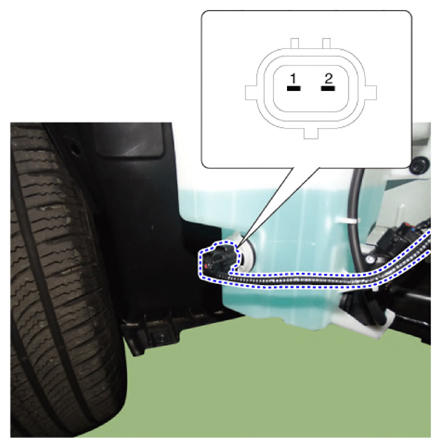

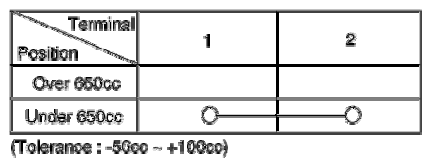

  3. Check for continuity between the No. 1 and No. 2 terminal in each float position.

    There should be continuity when the float is down.

    There should be no continuity when the float is up.

  4. If the continuity is not as specified, replace the washer fluid level switch
    G14958793Courtesy of KIA MOTORS AMERICA, INC.
    G14958794Courtesy of KIA MOTORS AMERICA, INC.
