Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

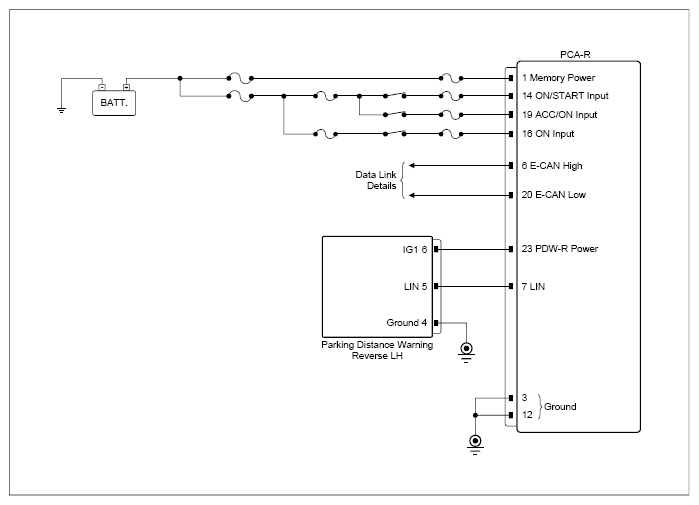

G14963133Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 PDW reverse center LH connector 6 (IG1) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect auxiliary battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 PDW reverse center LH connector 6 (IG1) PCA-R connector 23 (PDW-R power) Approx. below 1Ω
PDW reverse center LH connector 4 (ground) Chassis ground - Approx. below 1Ω
  1. Engine "ON".
  2. Gear "R".

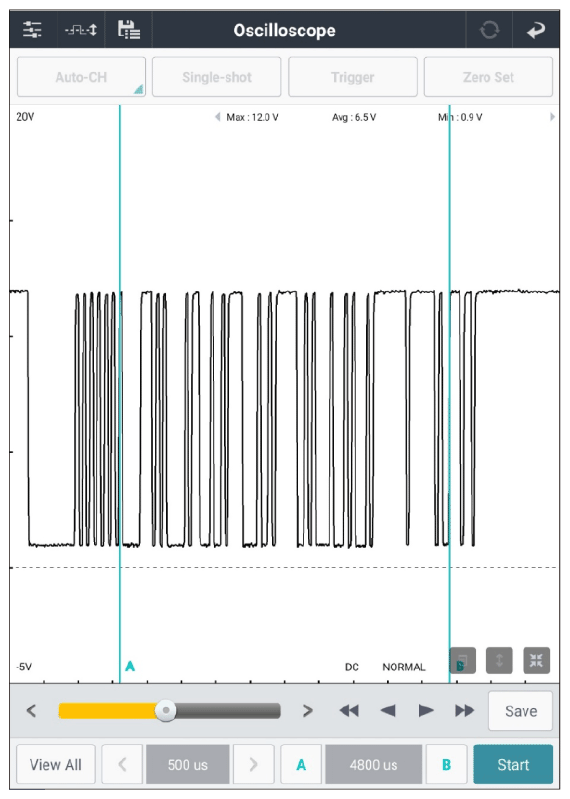

 PDW reverse center LH connector 5 (LIN) Chassis ground - Fig.1
G14963134Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
