Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

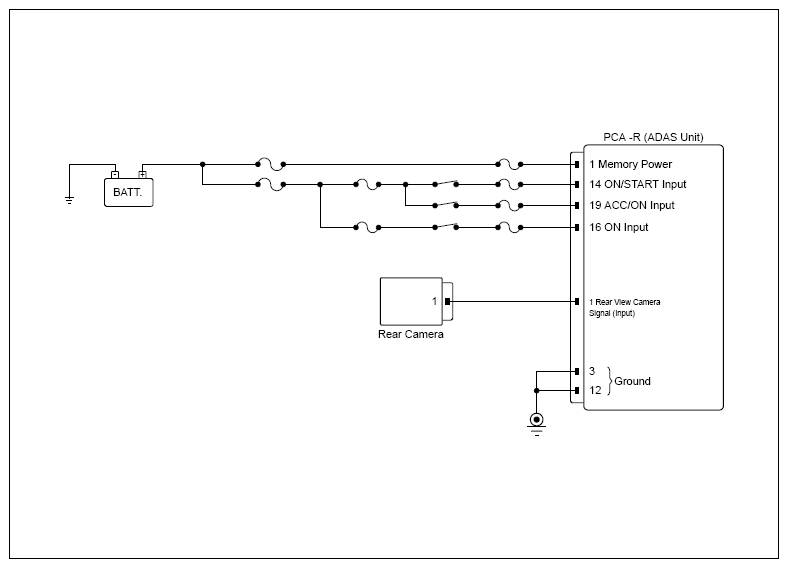

Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Rear camera connector	1 (video signal)	Chassis ground	-	Approx. 7V
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	Rear camera connector	1 (video signal)	PCA-R connector	1 (video signal)	Approx. below 1Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the PCA-R and Go to "Verification Of Repair " procedure.

* In Case of replacing PCA-R, perform following "System Inspection" procedures.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
