Section 109 (Parking Collision-Avoidance Assist (PCA) (PHEV))
>>
Schematic Diagrams
>>

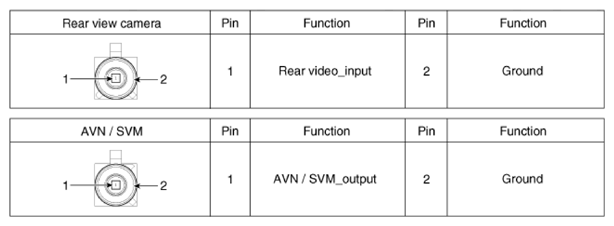

Connector And Terminal Function
>>

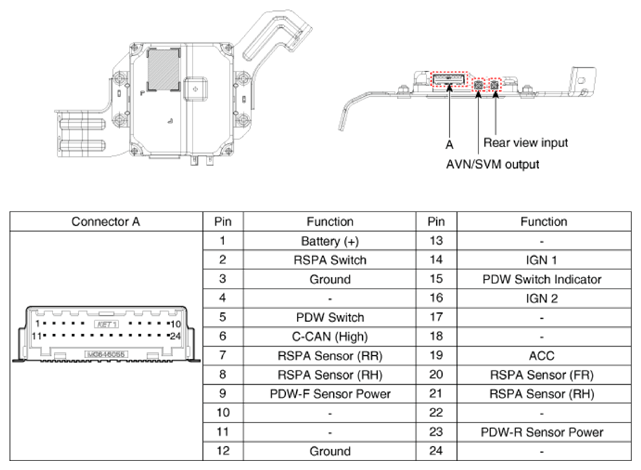

Parking Collision-Avoidance Assist (PCA-R) Unit
Parking Collision-Avoidance Assist (PCA-R) Unit
WARNING:
This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
