WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of KIA MOTORS AMERICA, INC.

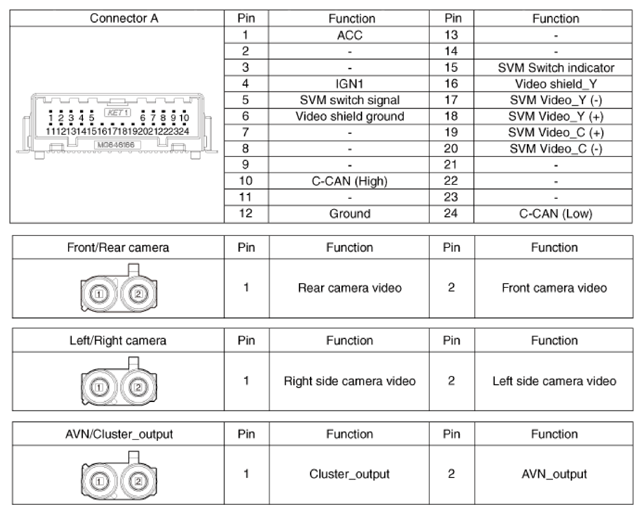

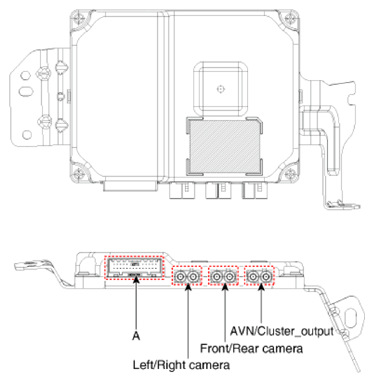

Fig 1: Surround View Monitor (SVM) ECU Connector End View And Terminal Description
