Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Integrated body control unit (IBU).

    (Refer to Body Electrical System - "REMOVAL ")

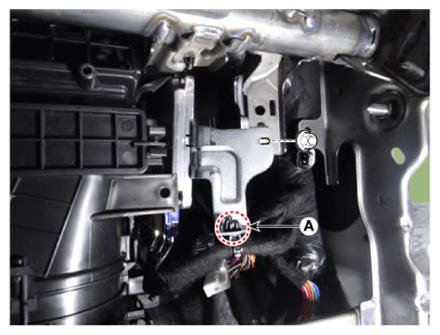

  2. Remove the SVM ECU mounting nut (A) and clip.
    G14959276Courtesy of KIA MOTORS AMERICA, INC.

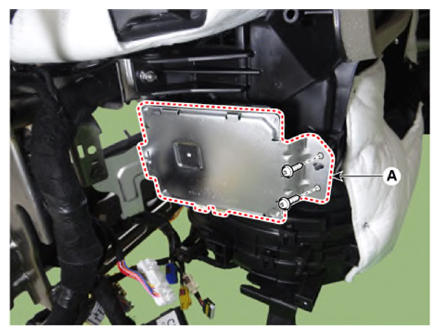

  3. Remove the SVM ECU (A) by removing the mounting screws.
    G14959277Courtesy of KIA MOTORS AMERICA, INC.

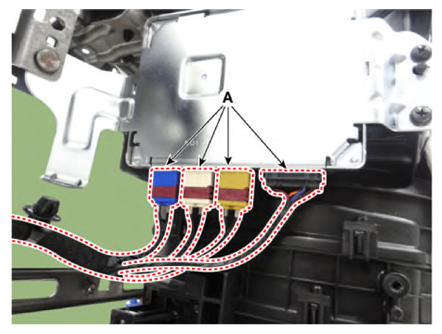

  4. Disconnect the SVM ECU connectors (A).
    G14959278Courtesy of KIA MOTORS AMERICA, INC.
