Side View Camera

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the outside rear view mirror scalp and housing cover.

    (Refer to Body - "OUTSIDE REAR VIEW MIRROR ")

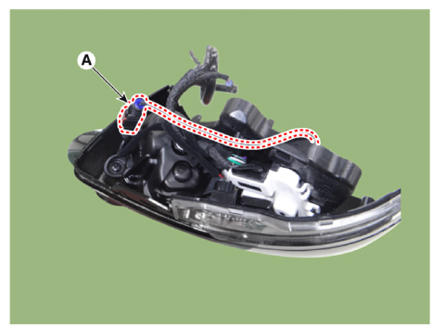

  3. Disconnect the side view camera connector (A).
    G14959284Courtesy of KIA MOTORS AMERICA, INC.

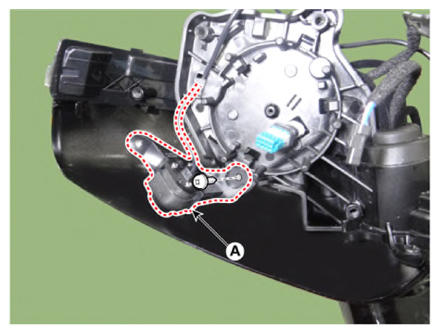

  4. Remove the side view camera (A) after removing the screws.
    G14959285Courtesy of KIA MOTORS AMERICA, INC.
