Front View Camera

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

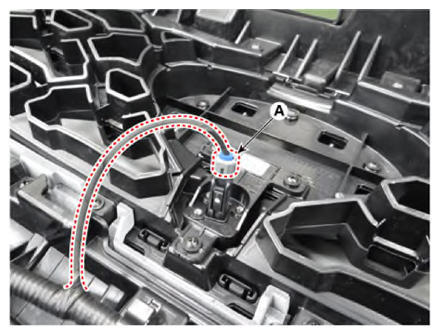

  3. Disconnect the front view camera connector (A).
    G14959282Courtesy of KIA MOTORS AMERICA, INC.

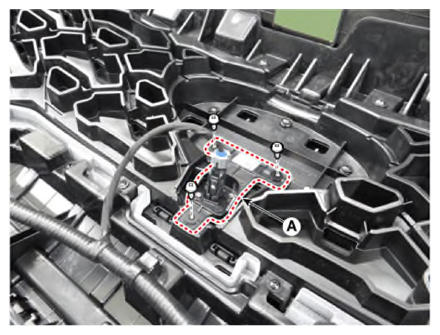

  4. Remove the front view camera (A) by removing the mounting screws.
    G14959283Courtesy of KIA MOTORS AMERICA, INC.
