Surround View Monitor (SVM)

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of KIA MOTORS AMERICA, INC.

Information

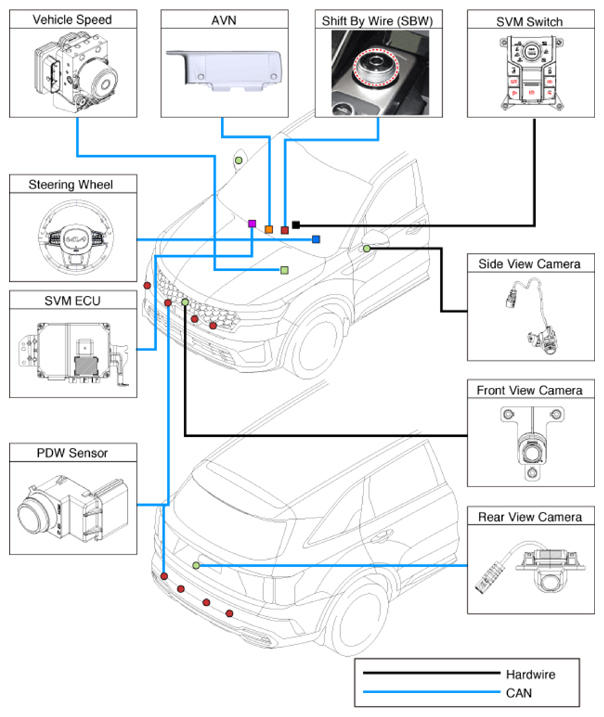

SVM unit basically transmits data via C-CAN only.
- Steering wheel angle sensor: C-CAN
- Vehicle speed sensor: C-CAN
It functions as a CGW (Central gateway) for C-CAN B-CAN, P-CAN, MM-CAN in ICU. e.g. The unit signal using B-CAN, P-CAN, MM-CAN is transmitted after converting to C-CAN in cluster.
- SVM monitor: MM-CAN
- Transmission: P-CAN (TCU)
- PDW sensor: B-CAN (IBU)
