Switch Input
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

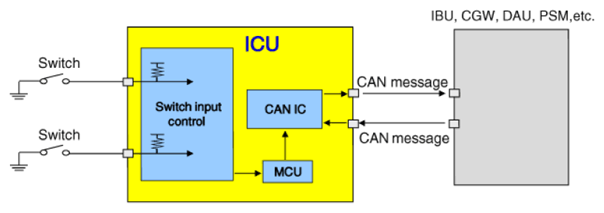

- Operation Function
- Hazard lamp switch, Seat belt switch, Tailgate switch, Door switch, etc.
- Operation Description
- Determined switch operation status
- Switch status messages are sent to other modules (IBU, CGW, DAU, PSM, etc.) via CAN communication.
 Courtesy of KIA MOTORS AMERICA, INC.
|
