Internal Relay Control

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operation Function
    • Burglar alarm horn, Tailgate, Power window, etc.
  2. Operation Description
    1. Relay on/off operation via CAN message of IBU

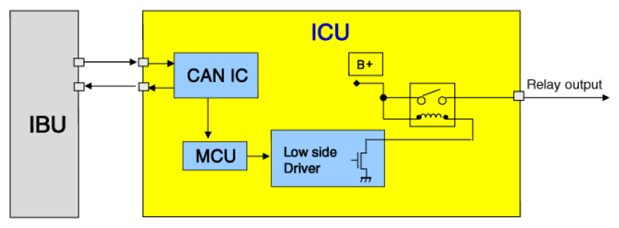

      G14942514Courtesy of KIA MOTORS AMERICA, INC.
