IPS Lamp Control

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operation Function
    • Headlamp low/high, Turn signal lamp, DRL lamp, Internal/External tail lamp, Stop lamp, etc.
  2. Operation Description
    1. Lamp on/off operation via CAN message of IBU
    2. Detects current flowing through the lamp via IPS
    3. Lamp OFF when over-current detection (PCL control: Cut current of lamp if reference current is exceeded)

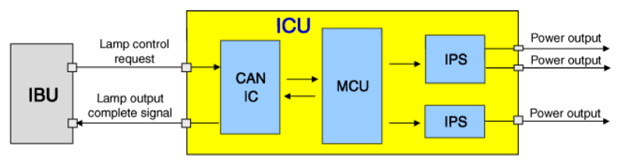

      G14942513Courtesy of KIA MOTORS AMERICA, INC.
