Engine Room PCB Block

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

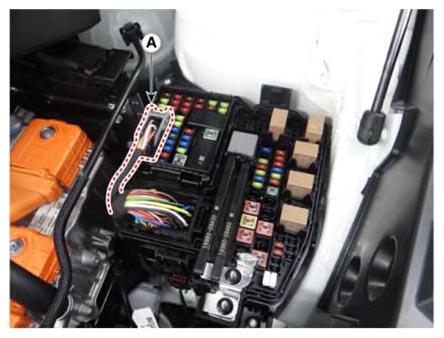

  2. Disconnect the connector (A).
    G14942506Courtesy of KIA MOTORS AMERICA, INC.

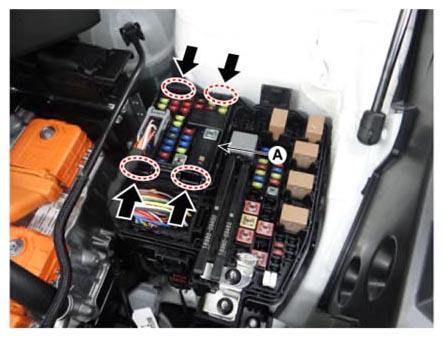

  3. Push the hooks in the direction of the arrow and lift up the engine room PCB block (A).
    G14942507Courtesy of KIA MOTORS AMERICA, INC.

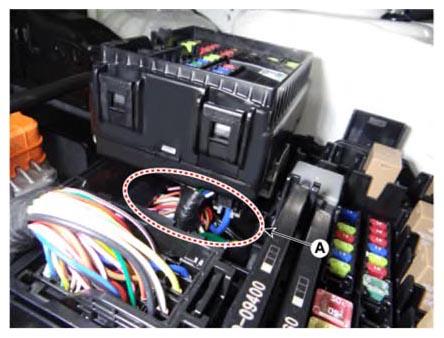

  4. Disconnect the connectors (A) from the engine room PCB block.
    G14942508Courtesy of KIA MOTORS AMERICA, INC.
