Multi Fuse

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

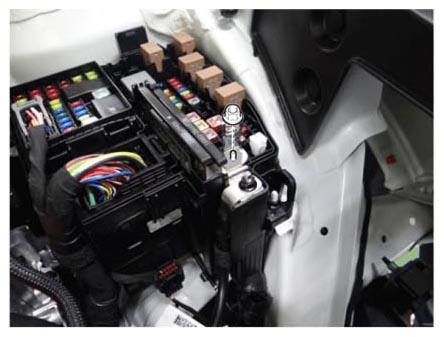

  2. Remove the multi fuse mounting nut.
    G14942503Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the multi fuse (B) by releasing the hook after removing the multi fuse (A).

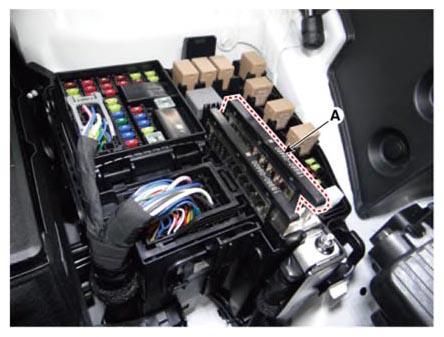

    G14942504Courtesy of KIA MOTORS AMERICA, INC.

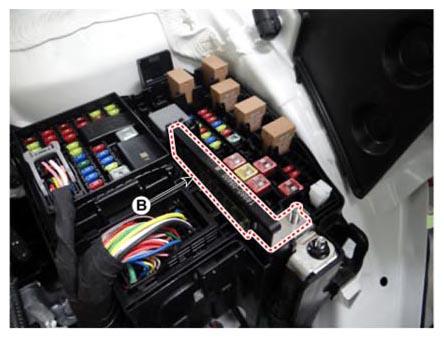

    G14942505Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the multi fuses for any damage.

    Information

    • The entire multi fuse has to be replaced even if only one fuse is damaged.
    • Use the multi fuse of the exact fuse capacity.
