Dust Cap

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

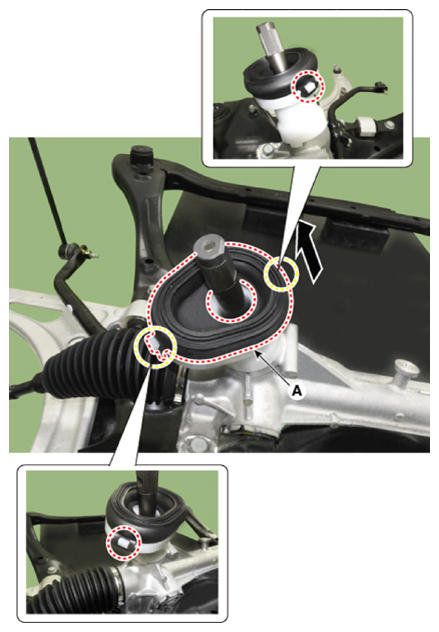

Remove the dust cap cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

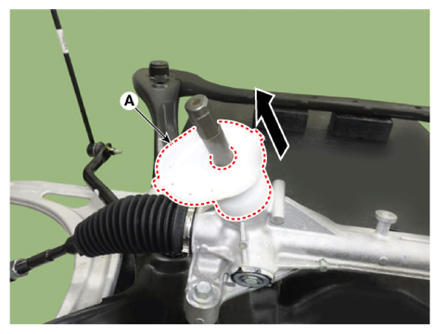

Remove the dust cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

Replace the tie rod end with a new one.

NOTE:

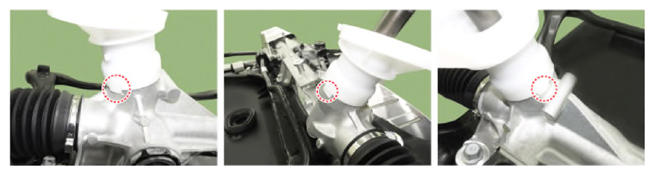

Refer to the drawing below, adjust the parts to the correct position during assembly.

Courtesy of KIA MOTORS AMERICA, INC.

Assemble the dust cap after cleaning the pinion shaft.

Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
