Components And Components Location: Components: [C-MDPS]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

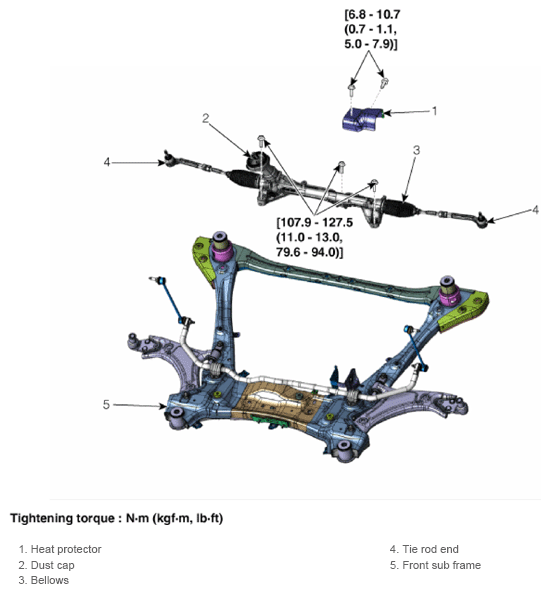

Fig 1: Steering Gear Box Components With Torque Specification - C-MDPS
G14958171Courtesy of KIA MOTORS AMERICA, INC.
