Terminal Function: [C-MDPS]

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

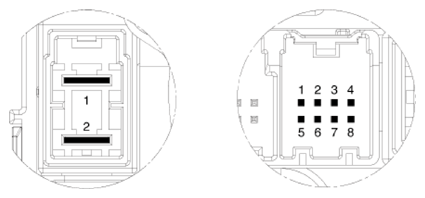

G14958121Courtesy of KIA MOTORS AMERICA, INC.
Type Pin No Description
MDPS Power 1 Battery +
2 Battery -
MDPS Unit 1 Ignition signal
2 -
3 -
4 -
5 -
6 -
7 C-CAN [HIGH]
8 C-CAN [LOW]
