Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Install the component to the specified torque.
  • Note that internal damage may occur if the component drops. In this case, use it after inspecting.

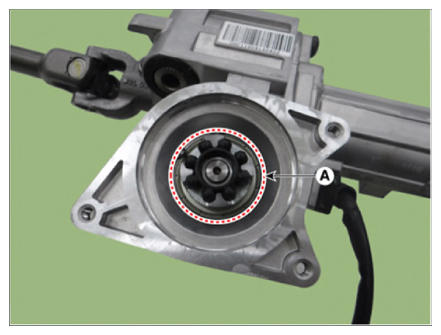

  • When installing a power pack, install it after checking the coupling (A).
    G14958144Courtesy of KIA MOTORS AMERICA, INC.
  • When attaching the power pack to the MDPS, attach the power pack in accordance with the guide line as follows.

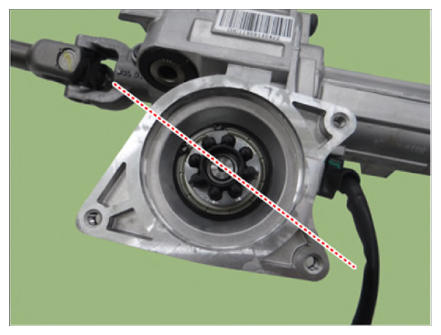

G14958145Courtesy of KIA MOTORS AMERICA, INC.

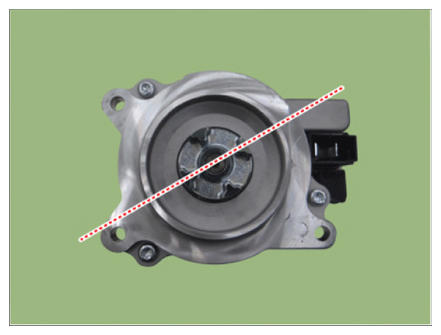

G14958146Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.
  2. Perform the "MDPS Tuning Data Setting" by KDS.

    (Refer to MDPS System - "DIAGNOSIS WITH KDS ")

  3. Perform the "SAS Calibration" and "Set the steering feel torque to zero" by KDS.

    (Refer to MDPS System - "DIAGNOSIS WITH KDS ")

  4. Check and erase the DTC.
    NOTE:
    • Check if there is any DTC code found before DTC erase.
    • Replace the parts by MDPS Power Pack unit.

      (Never detach the ECU and motor.)

  5. Perform the MDPS performance test.
